Greenbrook 24Hr Immersion Heater 16A – T102A

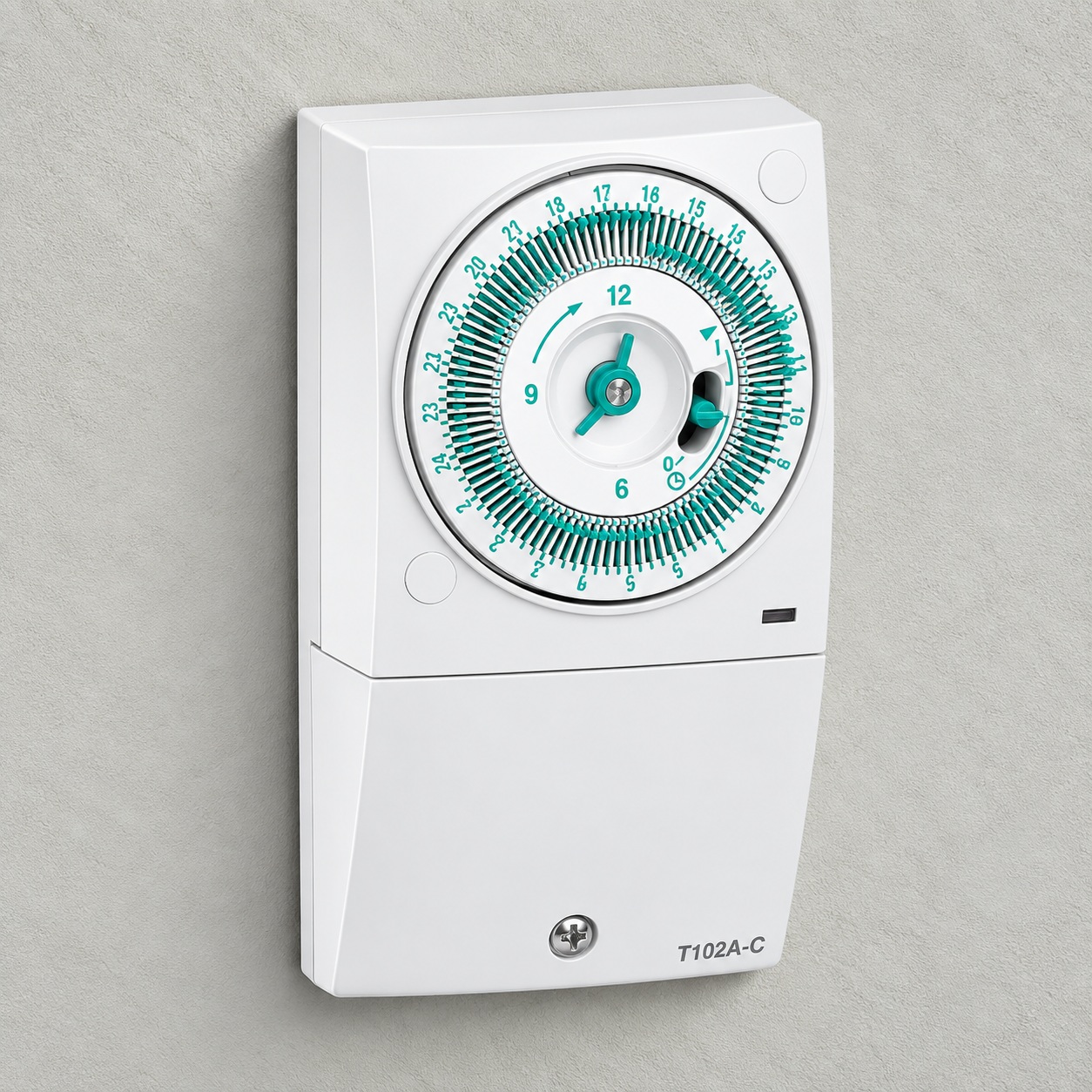

Greenbrook T102A 16A 24 Hour Mechanical Immersion Heater Timer

The Greenbrook T102A 24 Hour Mechanical Immersion Heater Timer provides a simple and reliable way to automatically control hot water systems. Designed specifically for immersion heater applications, it has a 16A maximum load and is suitable for immersion heaters rated up to 3.5kW.

The easy-to-use 24-hour mechanical timer provides 96 ON/OFF settings, allowing the heating period to be programmed in 15-minute intervals. This gives users greater control over when their hot water is heated and helps avoid unnecessary operation outside the required times.

For additional flexibility, the T102A features an ON / Timed / OFF selector with manual override, allowing the immersion heater to be switched on continuously, operated according to the programmed schedule, or switched off as required. A built-in Timer ON status indicator provides a clear visual indication when the timer is operating.

Designed for surface-mounted installation, the T102A features a durable white polycarbonate enclosure with a matt finish. Its compact design makes it suitable for domestic and other appropriate hot water installations where straightforward 24-hour control is required.

Key Features

• 24-hour mechanical immersion heater timer
• Designed for convenient hot water control
• 16A maximum load
• Suitable for immersion heaters up to 3.5kW
• 96 ON/OFF settings
• 15-minute minimum switching interval
• ON / Timed / OFF selector
• Manual override facility
• Timer ON status indicator
• Single-channel operation
• Surface-mounted design
• Wired connection
• Cord anchorage
• White matt polycarbonate enclosure
• IP20 rated
• Operating temperature range: -10°C to +55°C
• 1-year Greenbrook guarantee
• CE and UKCA compliant

Technical Specification
