Greenbrook 24Hr / 7 Day Immersion Heater Timer 16A – T106A

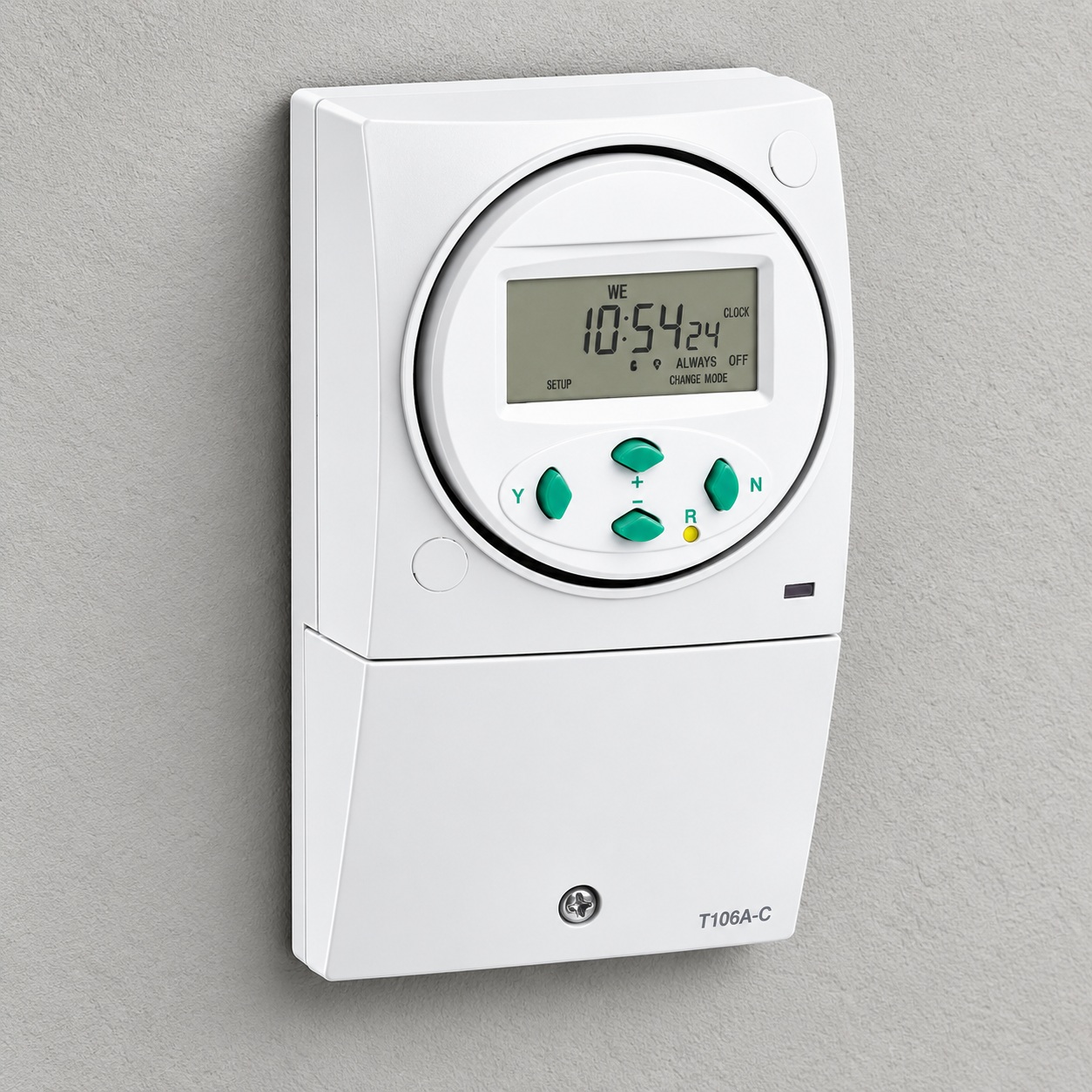

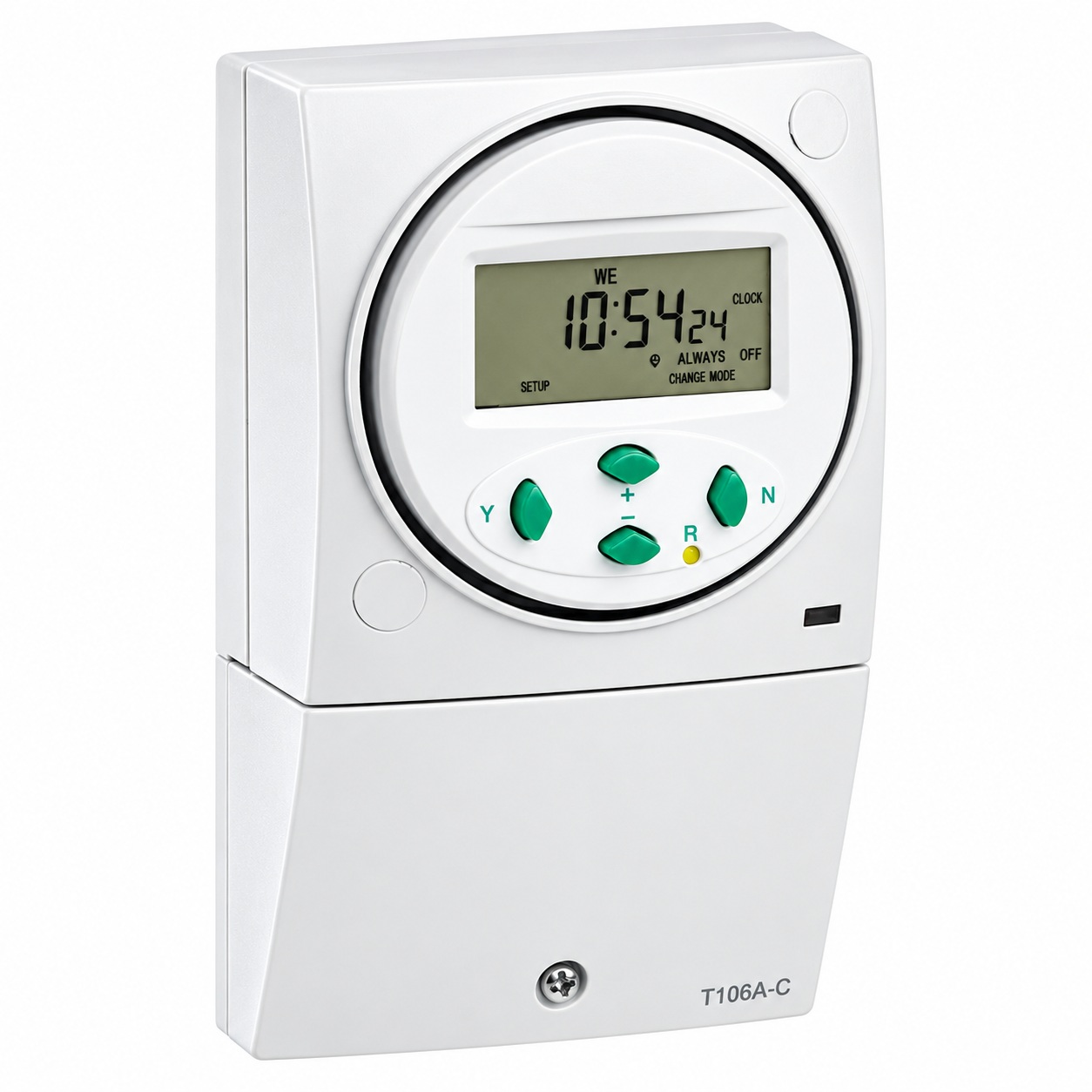

The Greenbrook T106A Electronic Immersion Heater Timer provides convenient programmable control of hot water systems, allowing an immersion heater to operate automatically at selected times throughout the day and week.

Designed for surface-mounted, hard-wired installation, the T106A features a clear digital display, timer ON status indicator and a manual override facility, giving the user the flexibility to take control of the immersion heater whenever required. A built-in battery backup helps retain the timer settings.

Rated at 16A for immersion heaters up to 3.5kW, the timer provides up to 24 ON/OFF settings with a minimum switching interval of just 1 minute. A summer time setting option is also included for easier adjustment when the clocks change.

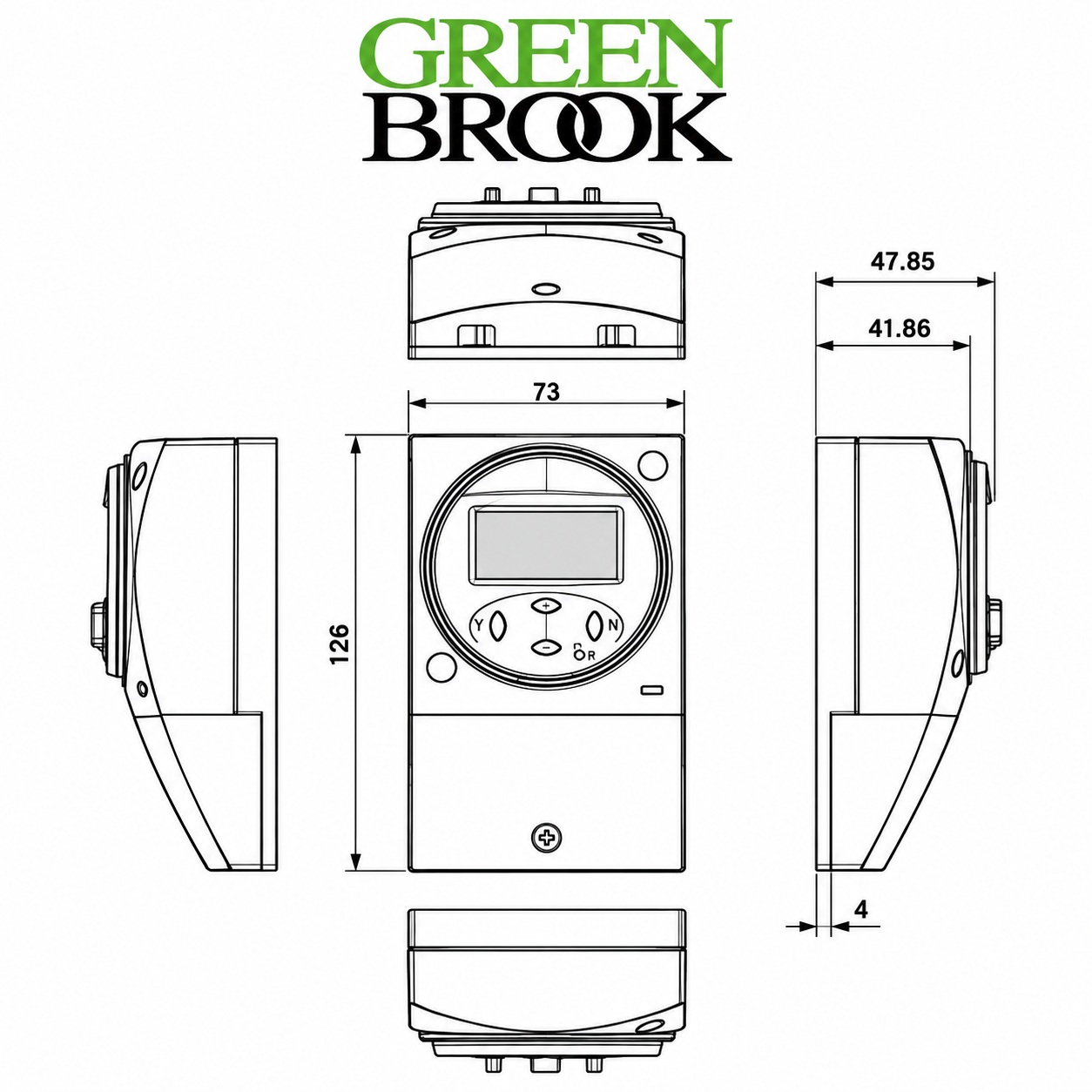

Manufactured with a durable polycarbonate body and finished in white, the compact unit measures just 126mm high × 73mm wide × 47.85mm deep, making it suitable for straightforward installation alongside domestic hot water systems.

Key Features

• 24 hour / 7 day electronic immersion heater timer
• Designed for automatic control of hot water
• 16A maximum load
• Suitable for immersion heaters up to 3.5kW
• Up to 24 ON/OFF settings
• 1-minute minimum switching time
• Digital display
• Timer ON status indicator
• Manual override facility
• Battery backup
• Summer time setting option
• Single-channel operation
• Surface-mounted, hard-wired installation
• IP20 rated
• 1-year Greenbrook guarantee

Technical Specification
