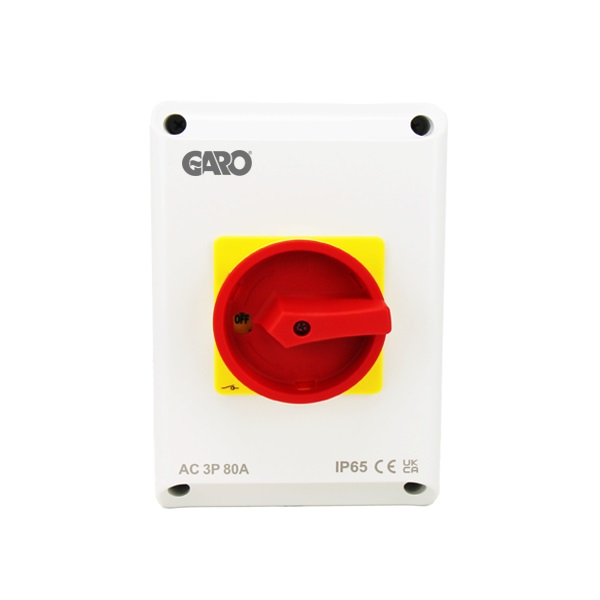

Garo Safety Isolator AC80 Amp 4 Pole IP65 – SIAC480IP65
Part No Description
SIAC480IP65 Safety Isolator AC80 Amp 4 Pole IP65
• Insulated 4 Pole AC Isolators in 80 Amp AC20
• Weatherproof to IP65
• Easy installation
• M25/32 Knockouts (Top & Bottom)
• Pad lockable handle in off position
• Interlocked cover, removeable in off position only
• Earth and Neutral terminals included
• Captive retained cover screws
• Conforms to IEC 60947-3
Specification
Current Rating (AC22): 80A
Number of Poles: 3P+N
Rated Power AC3 230V (kW): 20
Rated Power AC3 400V (kW): 25
Rated Continuous Power (In): 80A
Terminals: 25-35mm²
Knock Outs: 4 x M20/25
IP Rating: IP65
Interlocked: Yes
Standard: BS EN 60947-3
Certification: CE, UKCA
Recommended Torque: 2.5Nm
Dimensions
HxWxD: 240 x 160 x 165mm
