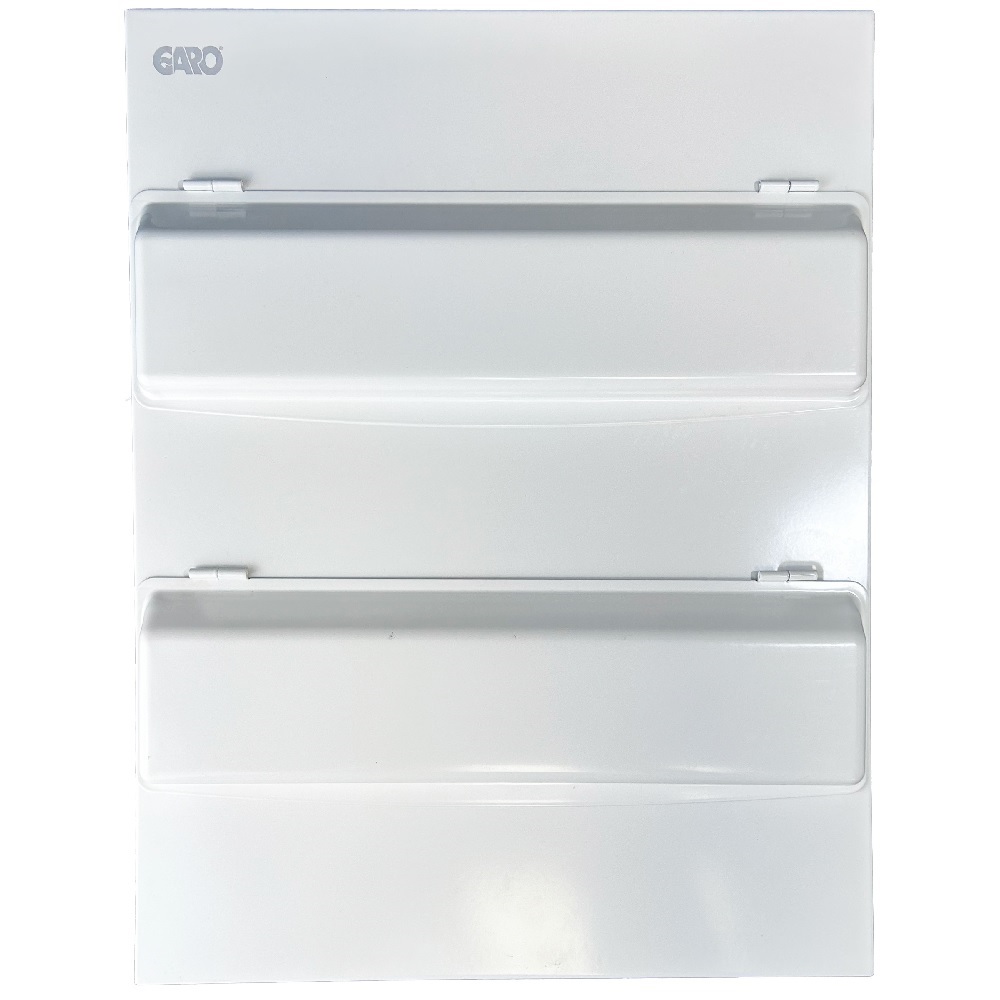

Garo Diamond 44 Way Dual Row Metal Clad Consumer Unit 100A Isolator SPD 39 Free Ways – GS44S39C

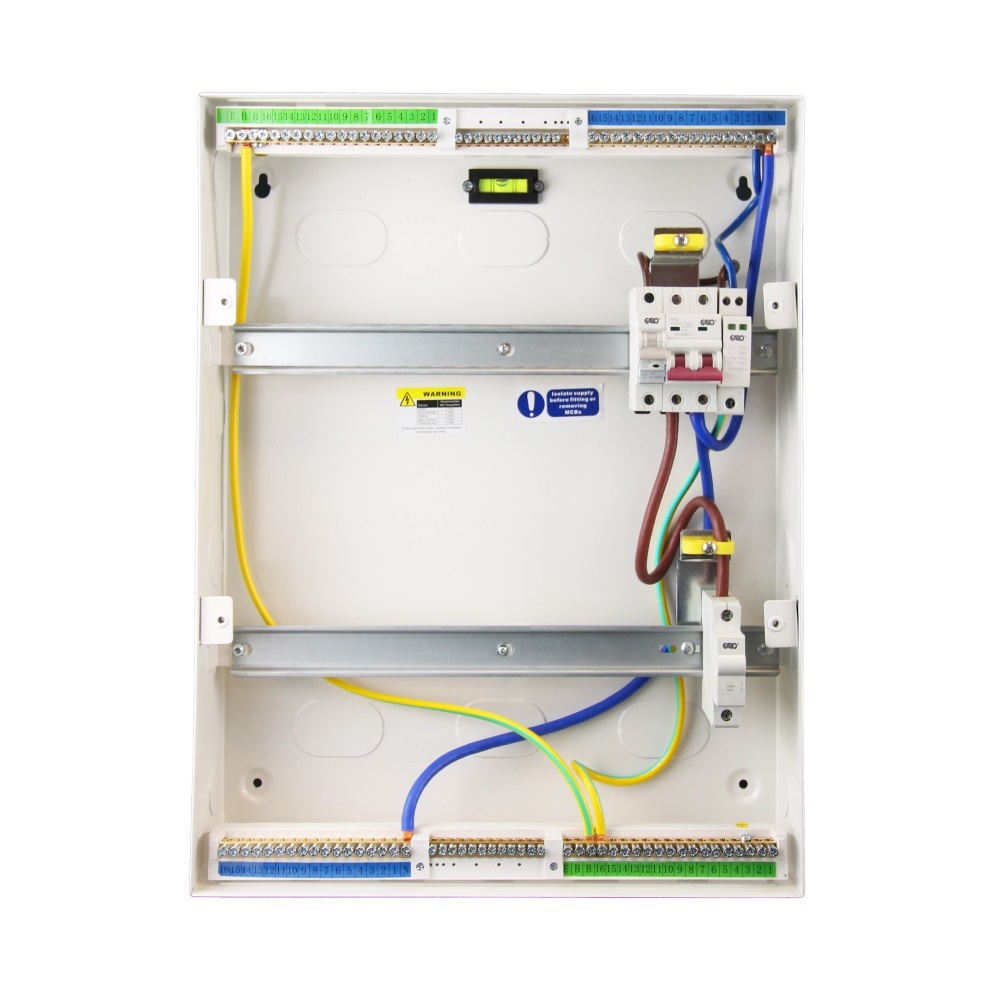

Exclusive design for surface mounting. The housing is manufactured in metal and is also fitted with a door. Each unit is supplied with earth and neutral blocks, additional blocks can be fitted on request.

The enclosures are manufactured from steel. Applicable standard is EN61439-3 for a rated current 100A at 230 Volts.

All Garo consumer units are assembled in our manufacturing facility specialising in quick turnaround on bespoke orders.

Amendment 3 compliant.

Full CAD design service available.

Key Features

Space-Savings: Houses more circuits in a compact unit.
Higher Circuit Capacity: Ideal for installations needing multiple circuits.
Simplified Installation: Reduces need for multiple units and saves on labour.
Better Cable Management: Minimises excessive cabling.
Cost-Effective: Fewer materials and labour required.
Future-Proofing: Room for future circuit additions in the same unit.
Easy Maintenance: Centralised circuits simplify troubleshooting and repairs.

Technical data

Rated current: 100A
Rated voltage: 230 V AC
Frequency: 50/60 Hz
Rated short-circuit capacity: 4 kA
Main Device: Double Pole Isolator 100A
Additional Devices None
Surge Protection: Type 11 ( TNC, TNS)
Degree of protection: IP40
Total number of ways: 44
Total Number of free ways: 39
Height..mm (H): 520
Width..mm (W): 474
Depth..mm (D): 118
Ambient temperature (C): -25…..+55
Storage temperature (C): -35…..+55
Terminals: 35mm
Maximum Backup Protection (A): 100
Standard: EN 61439-3
Compliance with: BS 7671

Dimensions
