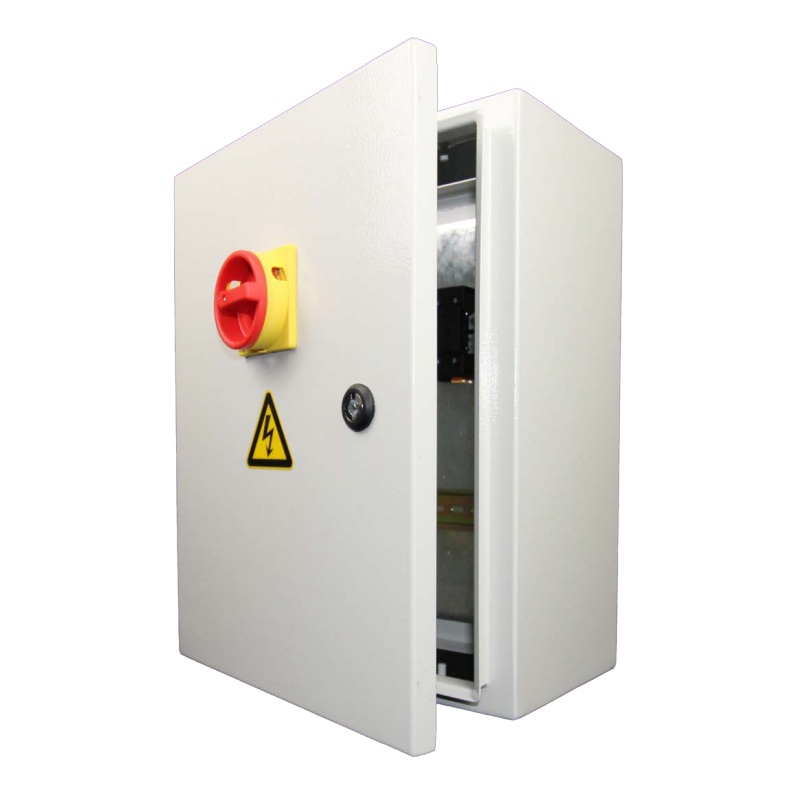

Garo 32A 4 Pole Metal Clad Isolator IP55 – GSI432

Specification

Rated insulation voltage Ui (V): 1000
Rated thermal current, Ith (A) 1): 32
Rated operational current Ie (A): AC-21 400/415V – 32
AC-22 400/415V – 32
Rated operational power (kW): AC-23 400/415V – 11
Rated fused short circuit current: Max. Back-up fuse (A) – 32
R.M.S. value Ik (kA) – 50
Impulse withstand voltage Uimp (kV): 8
Electrical endurance (operations): 2000
Mechanical endurance (operations): 20000
Terminals / Bolt size Cu (mm²): 6-16
Max terminal torque (Nm): 2.2
