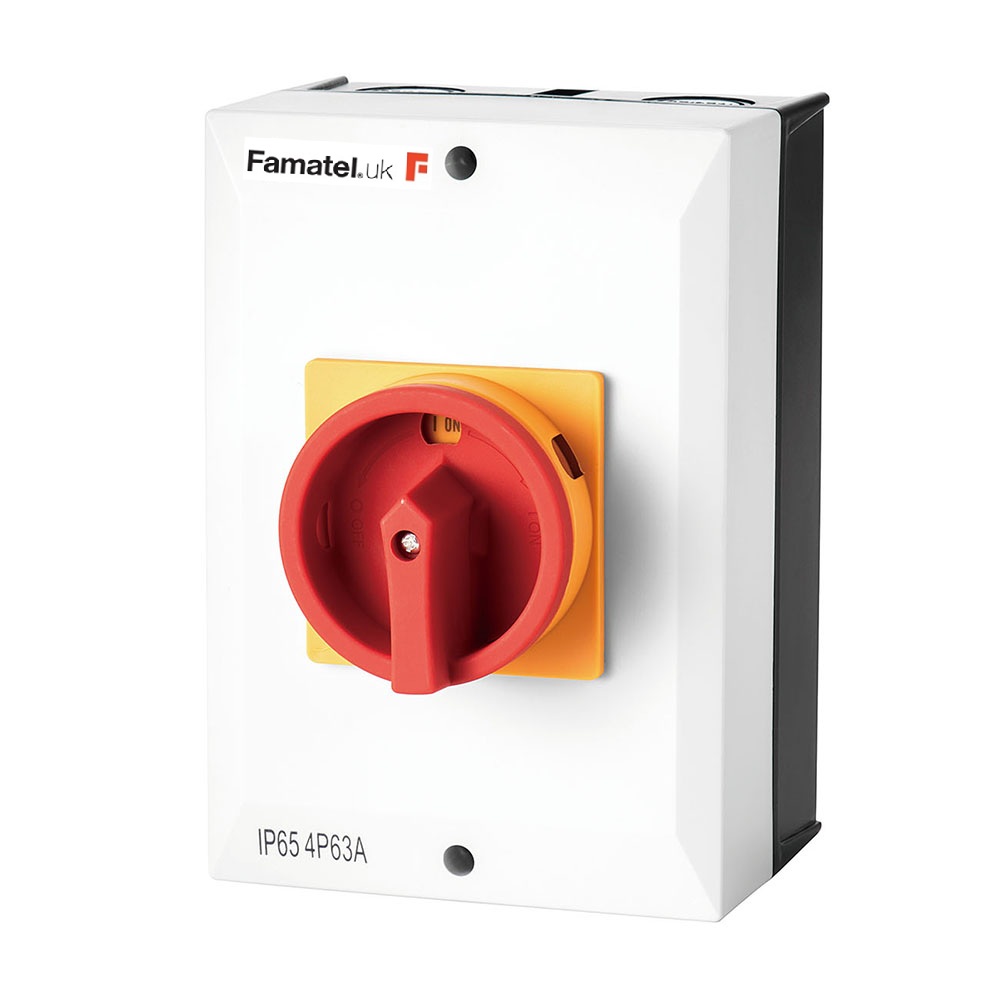

Famatel 63A 4 Pole Rotary Isolator IP65 – RS463
£18.82 Excl. VAT
Famatel 63A 4 Pole Rotary Isolator IP65 – RS463
Part No Description
RS463 63A 4 Pole Rotary Isolator IP65
The Famatel weatherproof rotary isolator switch range us manufactured from tough, durable thermoplastic for outdoor switching protection. Designed with safety in mind, the interlocked front cover can only be removed when in OFF position. Lockable switch prevents tampering.
Features
- IP Rating IP65
- Conforms to BS-EN 60947-3
- Tough durable thermoplastic construction
- Interlock front cover can only be removed when in the off position
- Operating Voltage 230V AC
- Switch can be removed from the DIN rail assembly allowing quick and easy first fix
- Cable entry knockouts on top and bottom (2 x M20/25)
- Padlockable Handle
- The terminals should be tightened to a torque of 1.8Nm
- Do not exceed the maximum cable size 16mm²
Dimensions
W121mm x H175mm x D123mm (Including Handle)
