Spare Part for the Famatel CAV units

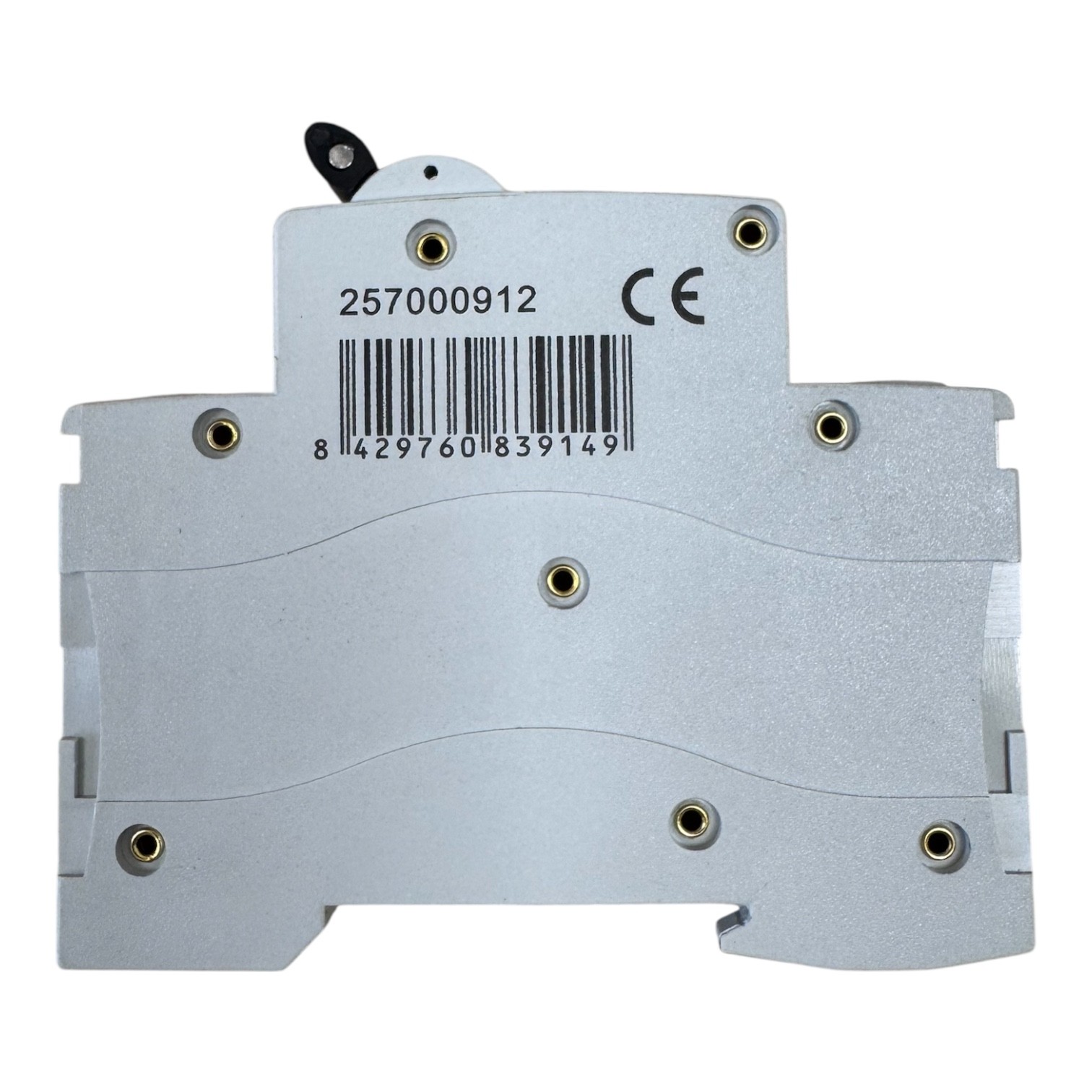

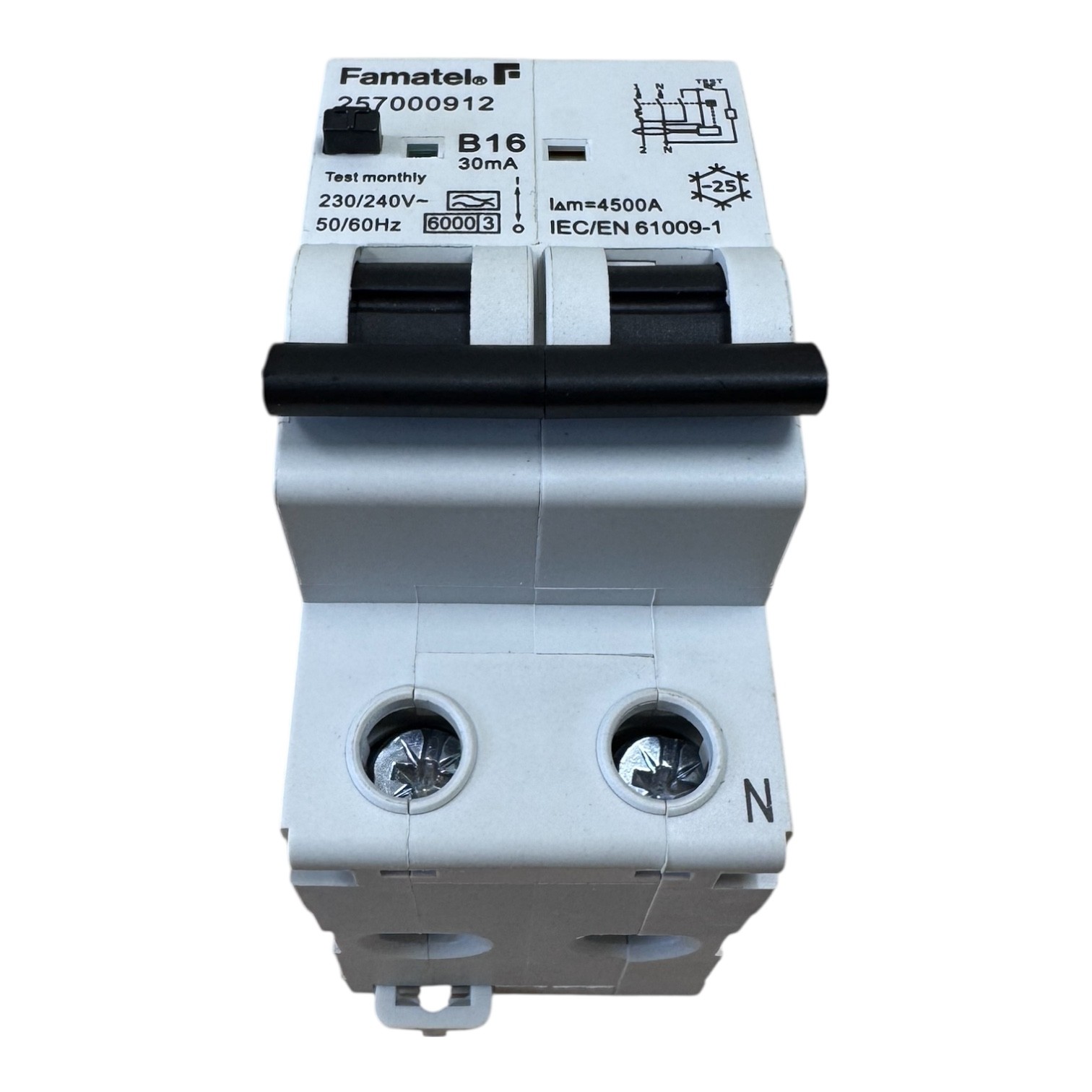

Famatel 16A 2 Pole A-Type Bi-Directional Mini RCBO B Curve 6kA – KEOB16A030
Part No Description
KEOB16A030 16A 2 Pole A-Type Bi-Directional Mini RCBO B Curve 6kA
KEO is a range of MCB sized RCBOs, apply to circuit of AC50/60Hz. Rated voltage to 230/240V, and current up to 40 A, bring higher levels of safety to an electrical installation and its users because they include switched neutral as standard, which will guarantee that healthy circuits remain in service and that only a faulty circuit is switched off.
● Switching and isolation.
● Overload and short circuit protection.
● Type A detects and respond both AC and pulsating DC.
● Indirect and direct contacts protection.
● Protection against fire hazard caused by insulation faults.
● Bidirectional
Technical Data
● Rated current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A
● Rated voltage (Ue): 230/240V AC.
● Breaking capacity (Icn): 6kA.
● Rated residual current: 30mA.
● Tripping characteristic: B,C.
● Electrical endurance: 4000 cycles.
● Mechanical endurance: 100000 cycles.
● Complies with BS EN – 61009-1.
● Type: A.
● Terminal cable capacity maximum: IN: 16mm², OUT: 16mm²
