Famatel 1 Way Hook Up Unit 1 x 16A 2P+E Electronic Interlock Socket 1 x 16A RCBO Type A DP 30mA – NSICAV1
Part No Description
NSICAV1 1 Way Hook Up Unit 1 x 16A 2P+E Electronic Interlock Socket 1 x 16A RCBO Type A DP 30mA
1 x 16A 2P+E Electronic Interlock Socket
1 x 16A RCBO Type A DP 30mA
- Made In Britain
- UKCA
- Available in 16A, 32A
- Single phase
- Side mounted and Front mounted versions
- 18th edition regulations compliant
- Rating of unit as standard IP54
- Optional IP 65 available
- Optional MID compliant kWh meter
- Optional pre-paid meter
- Optional Smart system Integration
- Built-in “RCBO” overload and 30mA fault current
- IP65 weatherproof ABS enclosure
- Devices access flap
- Optional zinc coated mounting post
- Optional Brass plates available
- Optional Loop in and out Terminals
- Easy to install & maintain
- IP Rated & UV stabilised
- Glow wire tested to 650 and 850 degrees
- Operational temp -25 to plus 40
- Replacement parts for all units available
- Full Metering solutions Wifi / Sim based Monitoring software;

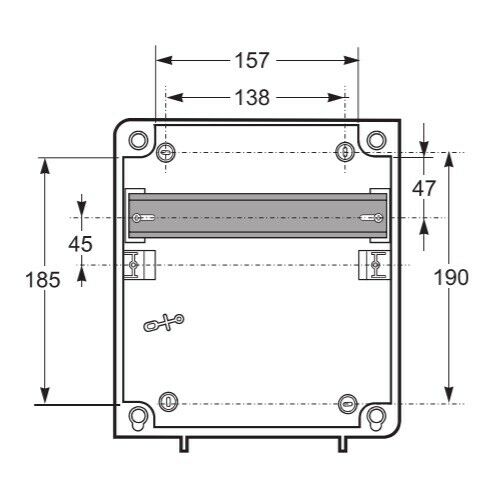

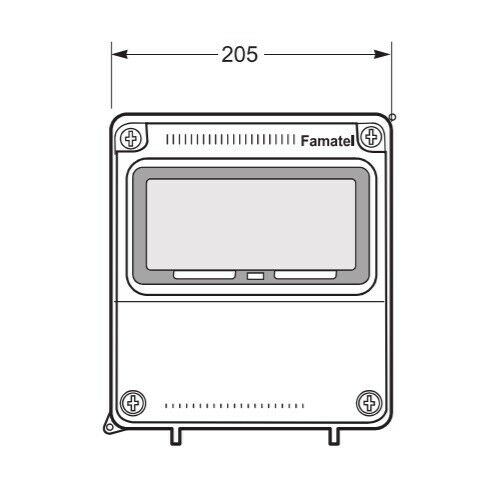

Dimensions: H 260mm x W 215mm x D 150mm
See product code CAVSTK1Z for suitable zinc coated stake for this unit.
