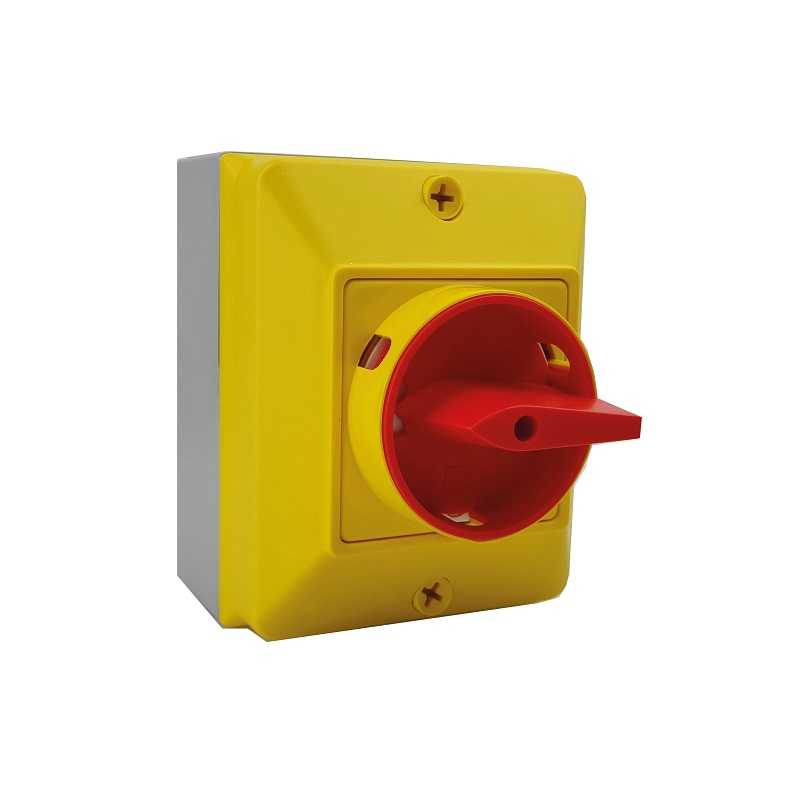

Europa 20A 4 Pole Saturn Rotary Isolator IP66 – SAT-IS204
Part No Description
SAT-IS204 20A 4 Pole Saturn Rotary Isolator IP66
20A 4 Pole (Insulated) Rotary Isolator
- Enhanced Safety
- Easy Installation
- Robust & Durable
- Cost Effective
- High Visibility
- Generous Wiring Space
- Padlockable in the OFF position with up to three locks
- Retain-screws on lids to prevent screws from falling off
- Top and bottom cables entries allow easier access into the enclosure.
- Complies with BS EN 60947-3 and EN 60947-3.
Technical Specification
Rated Operational Voltage: 690V
Main Switch: Isolating Voltage Up To 750V
Rated Impulse Withstand Voltage Uimp: 6kV
Rated Uninterrupted Current Iu: 20A
Rated Operational current Ie: AC-21A – 20A, AC-1 – 20A
Rated Operational Power at AC-23A
3 Phase 380-440V kW 7.5 15 18.5
Rated Operational Power at AC-3
380-440V: 4kW
Terminal Cross Section
Single/ Multiple Strand Wire: Min – 2.5mm², Max 10mm²
Fine-Strand Wire with Sleeve: Min – 0.75mm², Max – 6mm²
Recommended Tightening Torque: 1.7Nm
Dimensions (HxWxD): 125mm x 100mm x 117mm
