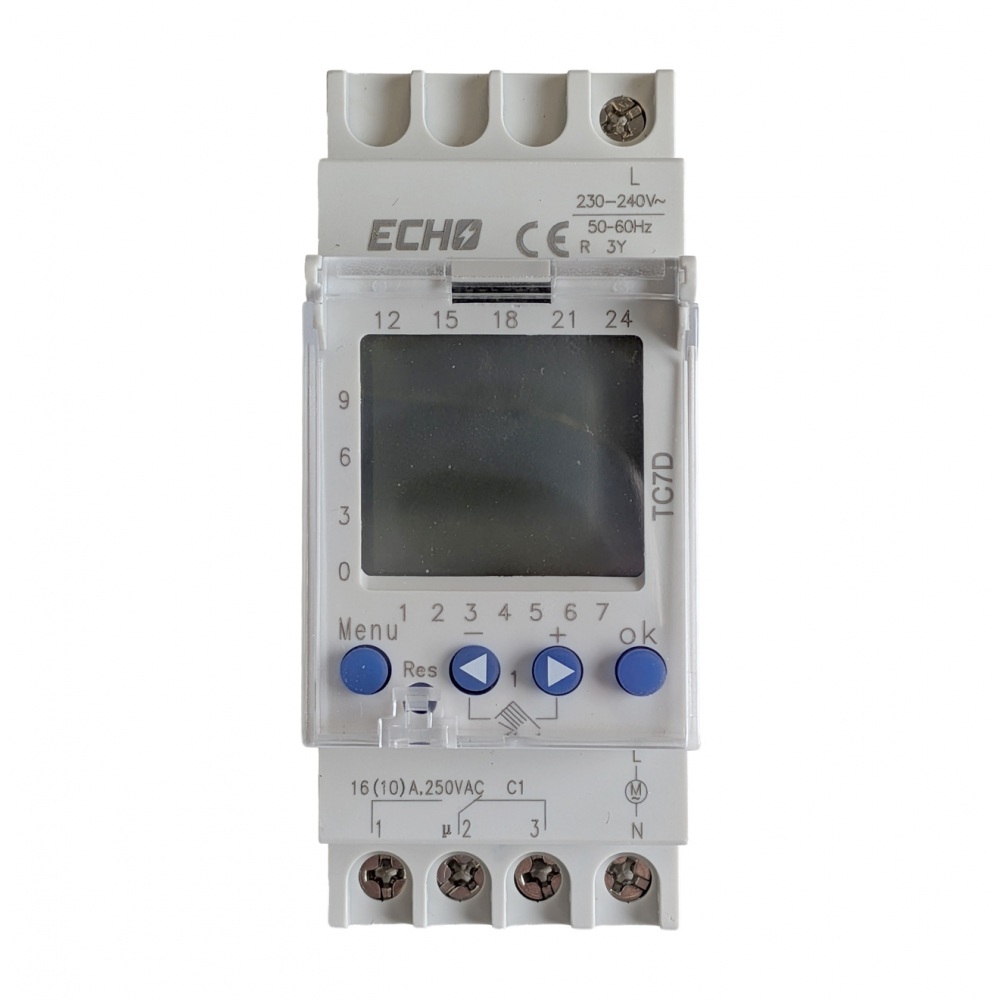

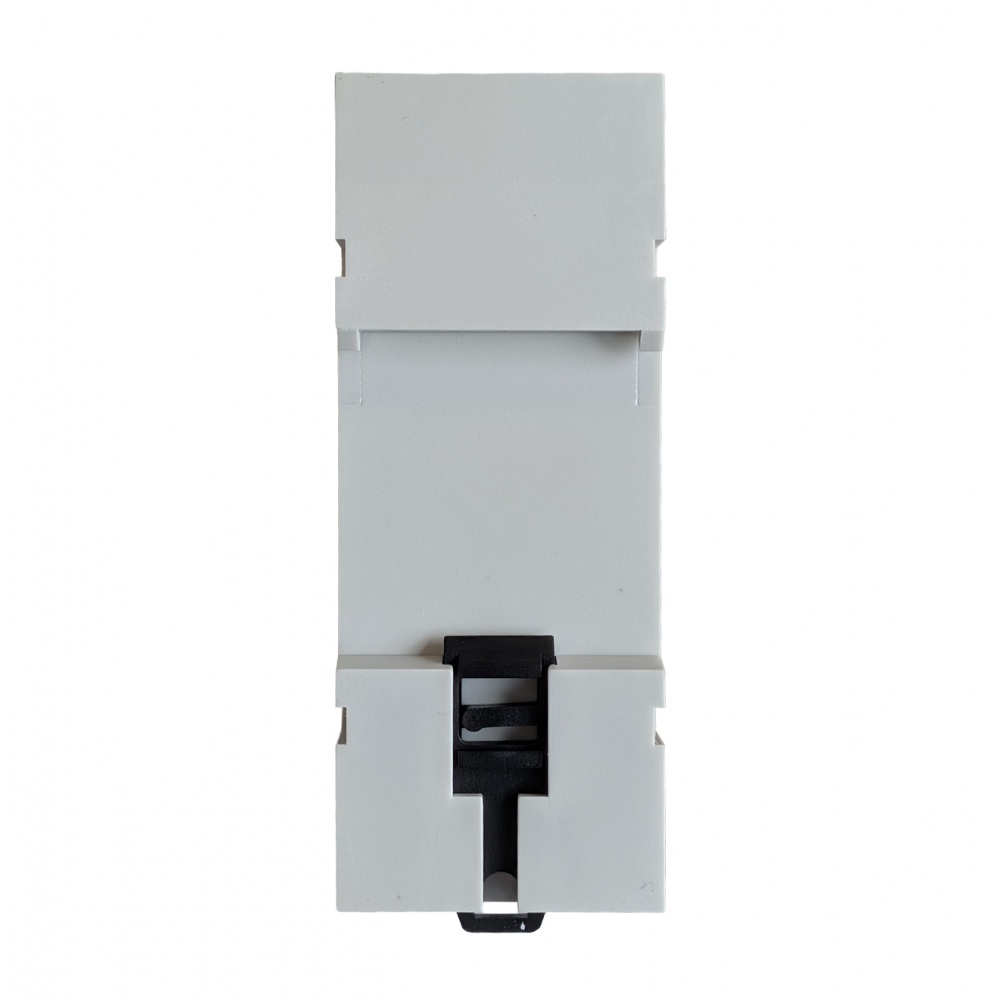

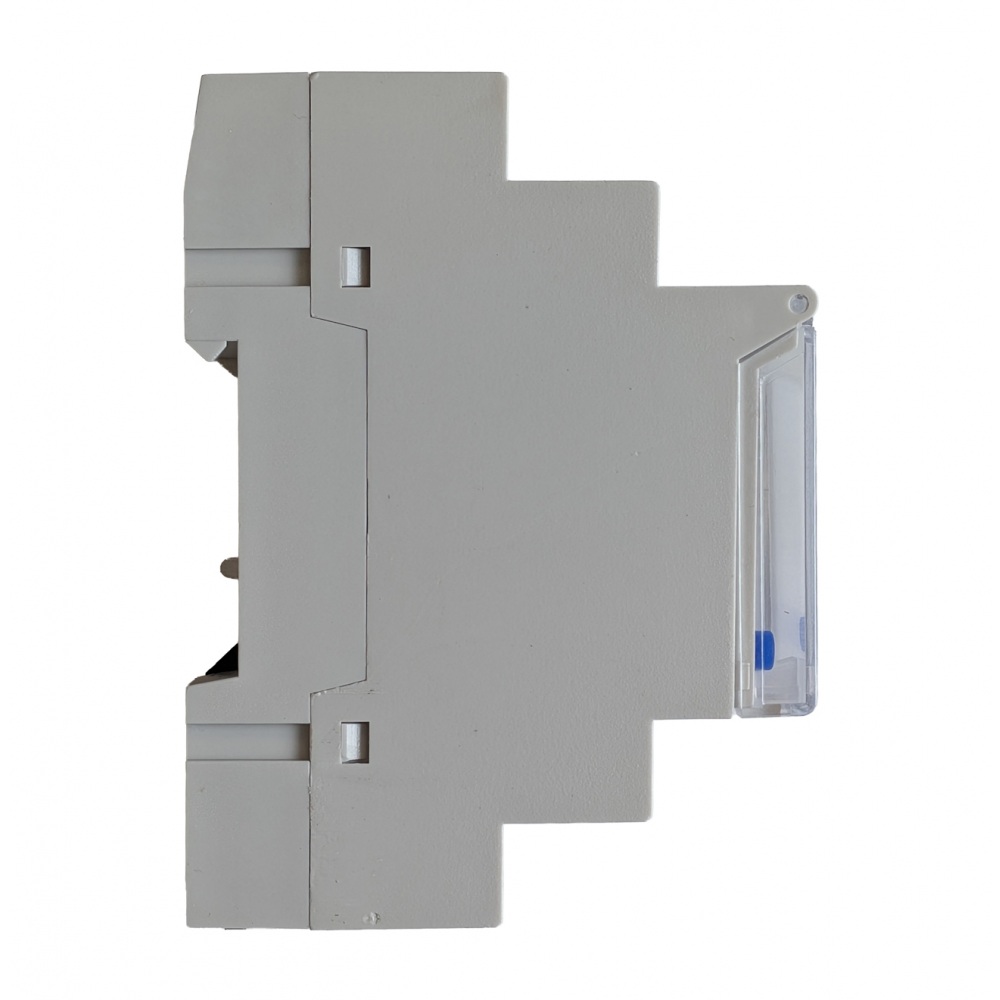

Echo Time Clock 16A 1 Channel 7 Day + Battery – TC7D
£28.83 Excl. VAT
Echo Time Clock 16A 1 Channel 7 Day + Battery – TC7D
Part No Description
TC7D Time Clock 16A 1 Channel 7 Day + Battery
TC7D Time Clock 16A 1 Channel 7 Day + Battery
The 1-Channel 7-Day Timer Switch (TC7D) is a versatile programmable timer designed for automated control of electrical devices such as lighting, ventilation, and machinery. With up to 96 memory locations and flexible day grouping, it allows users to schedule on/off cycles, pulses, and cycles for efficient energy management and convenience in both residential and commercial settings.
Operation and Safety Description
Operation of the TC7D timer is user-friendly, featuring an LCD display and intuitive menu navigation via touch keys. Programming includes options for daily, weekly, random, holiday, pulse, and cycle modes. For safety, installation and electrical connections must be performed by a qualified electrician. Unauthorized modifications void the warranty. The device can be PIN-locked to prevent unauthorized access, and all national electrical regulations and safety standards must be followed.
Technical Specifications
- Rated Voltage: 230-240V~ (+6%/-10%), 50-60Hz
- Switching Power: 16A (cosφ=1), 10A (cosφ=0.6), 250V~
- Shortest Switching Time: 1 minute
- Memory Locations: 96
- Display: LCD with text line
- Power Reserve: Approx. 4 years (lithium battery)
- Operating Temperature: -10°C to +50°C
- Lamp Load: Incandescent/Halogen up to 2300W
- Protection: IP20 (IEC/EN 60529)
- Weight: Approx. 140g
- Dimensions: 93 x 65 x 49 mm (main body)
Description
Echo Time Clock 16A 1 Channel 7 Day + Battery – TC7D
Part No Description
TC7D Time Clock 16A 1 Channel 7 Day + Battery
TC7D Time Clock 16A 1 Channel 7 Day + Battery
The 1-Channel 7-Day Timer Switch (TC7D) is a versatile programmable timer designed for automated control of electrical devices such as lighting, ventilation, and machinery. With up to 96 memory locations and flexible day grouping, it allows users to schedule on/off cycles, pulses, and cycles for efficient energy management and convenience in both residential and commercial settings.
Operation and Safety Description
Operation of the TC7D timer is user-friendly, featuring an LCD display and intuitive menu navigation via touch keys. Programming includes options for daily, weekly, random, holiday, pulse, and cycle modes. For safety, installation and electrical connections must be performed by a qualified electrician. Unauthorized modifications void the warranty. The device can be PIN-locked to prevent unauthorized access, and all national electrical regulations and safety standards must be followed.
Technical Specifications
- Rated Voltage: 230-240V~ (+6%/-10%), 50-60Hz
- Switching Power: 16A (cosφ=1), 10A (cosφ=0.6), 250V~
- Shortest Switching Time: 1 minute
- Memory Locations: 96
- Display: LCD with text line
- Power Reserve: Approx. 4 years (lithium battery)
- Operating Temperature: -10°C to +50°C
- Lamp Load: Incandescent/Halogen up to 2300W
- Protection: IP20 (IEC/EN 60529)
- Weight: Approx. 140g
- Dimensions: 93 x 65 x 49 mm (main body)
