Eastron Metal Enclosed Eastron Three Phase Digital kWh Meter Din Rail Mount – ME3PDML

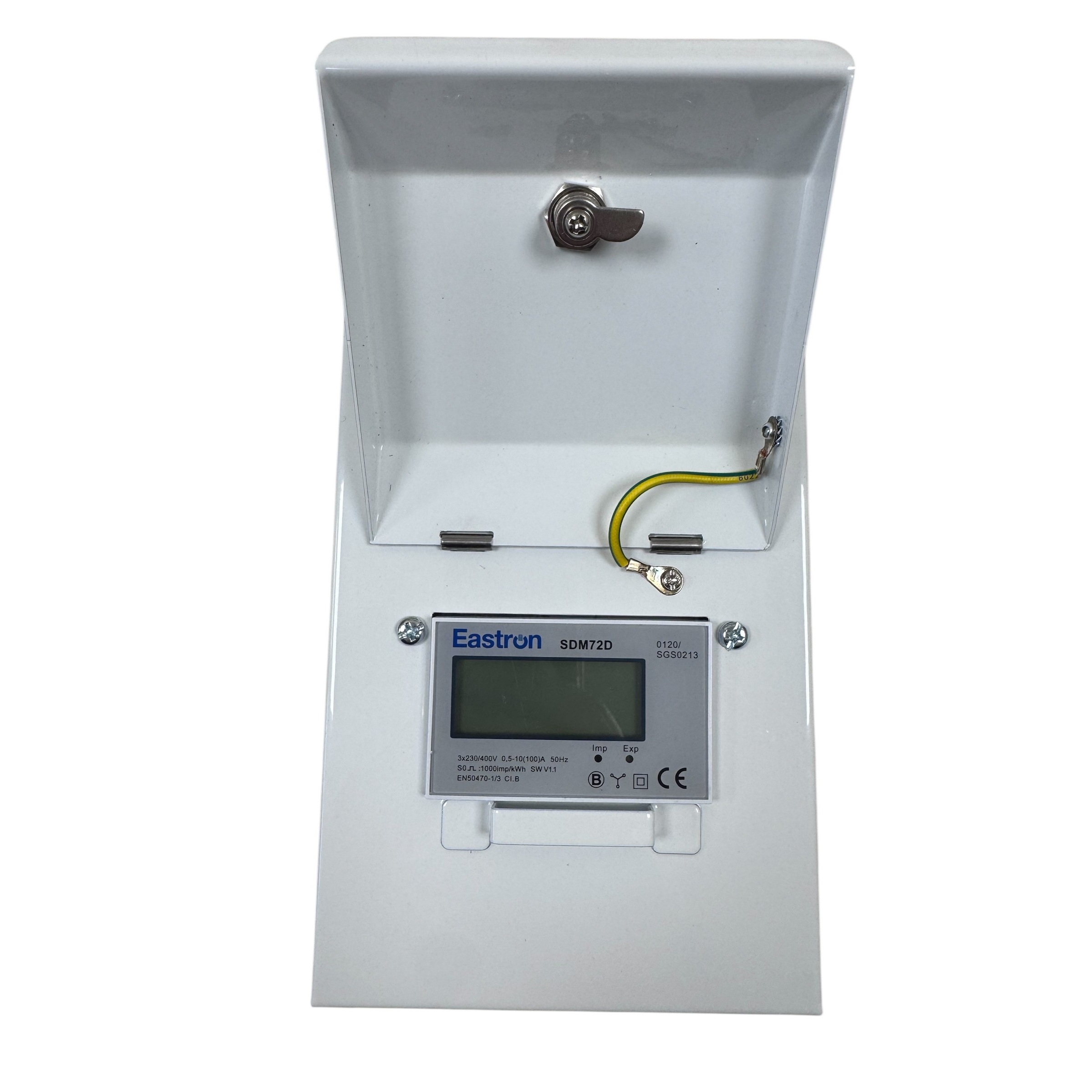

SDM72D-MID three phase digital kWh meter (100A direct connected – pulsed output)

The SDM72D Digital Power Meter works directly connected to a maximum load 100A AC circuit.

This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality. This certification allows this model to be used for any sub-billing applications.

Unlike other alternatives, this meter is housed in a 4 Module DIN rail case, meaning it takes up very little space.

The SDM72D measures and displays Total Active Energy and can be remotely monitored with a pulse collector.

Enclosure

Lockable consumer unit enclosures supply with blank, Neutral Cable, Busbar, Neutrual& Earth Terminal bar, Din Rail.

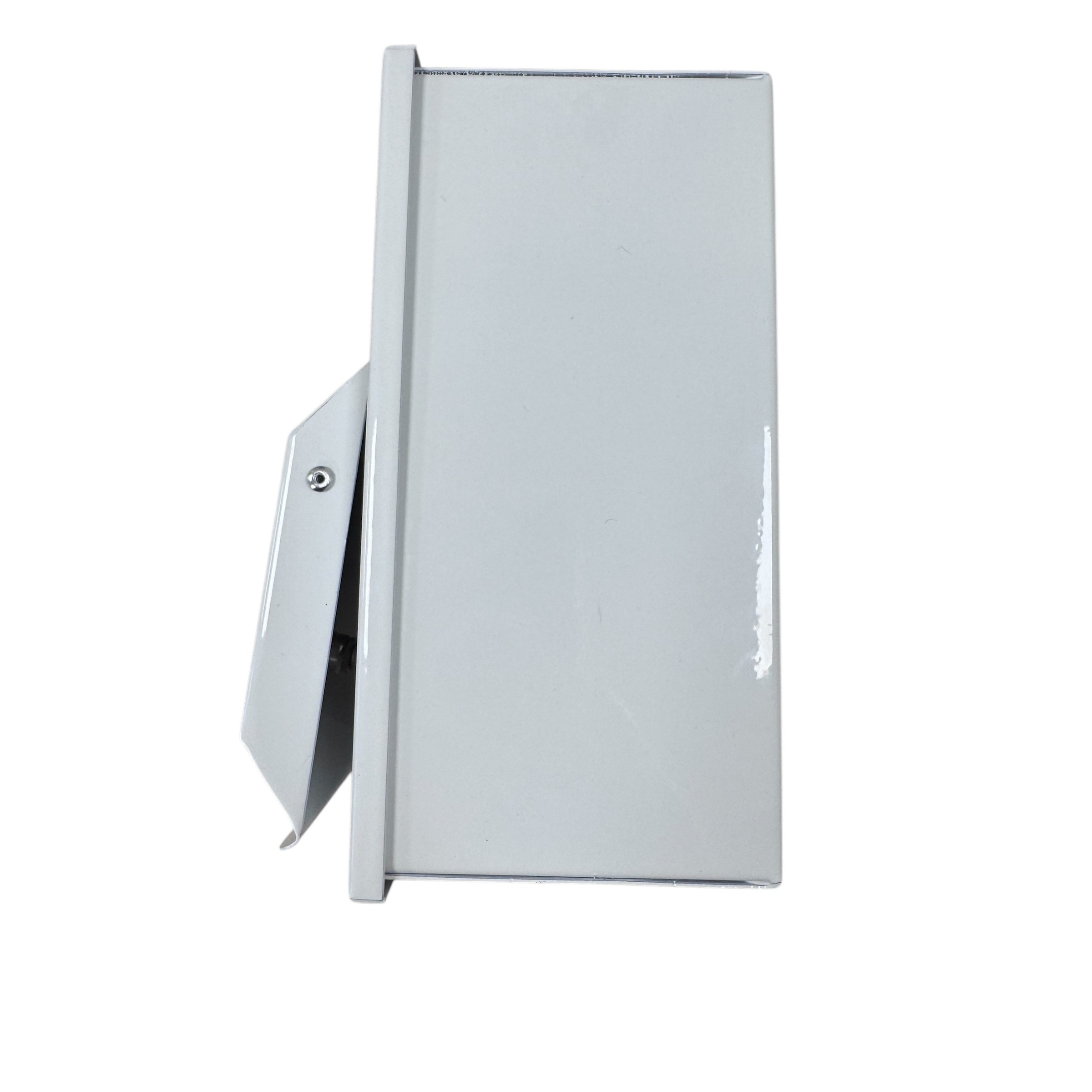

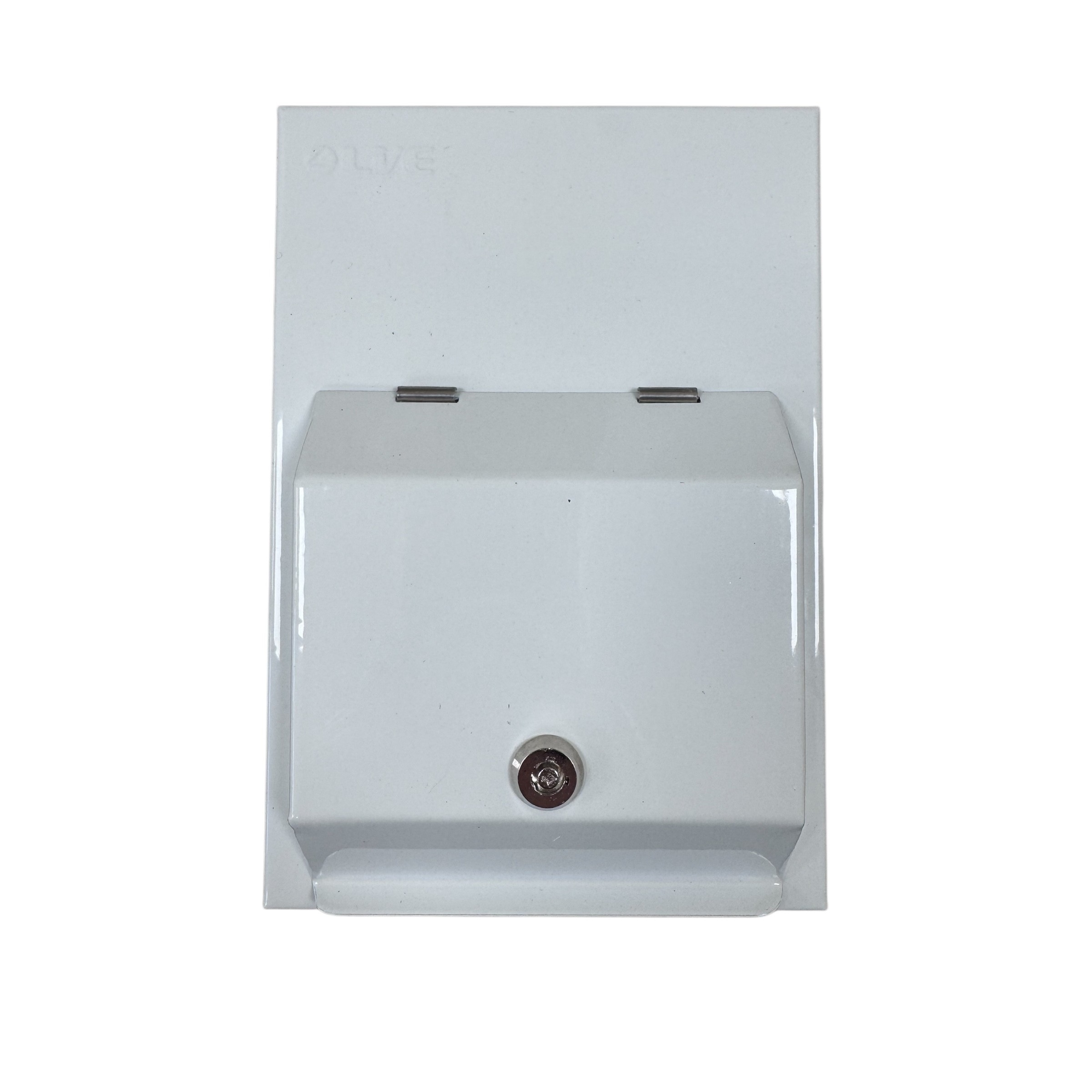

Fully enclosed metal construction body with drop down metal lid.

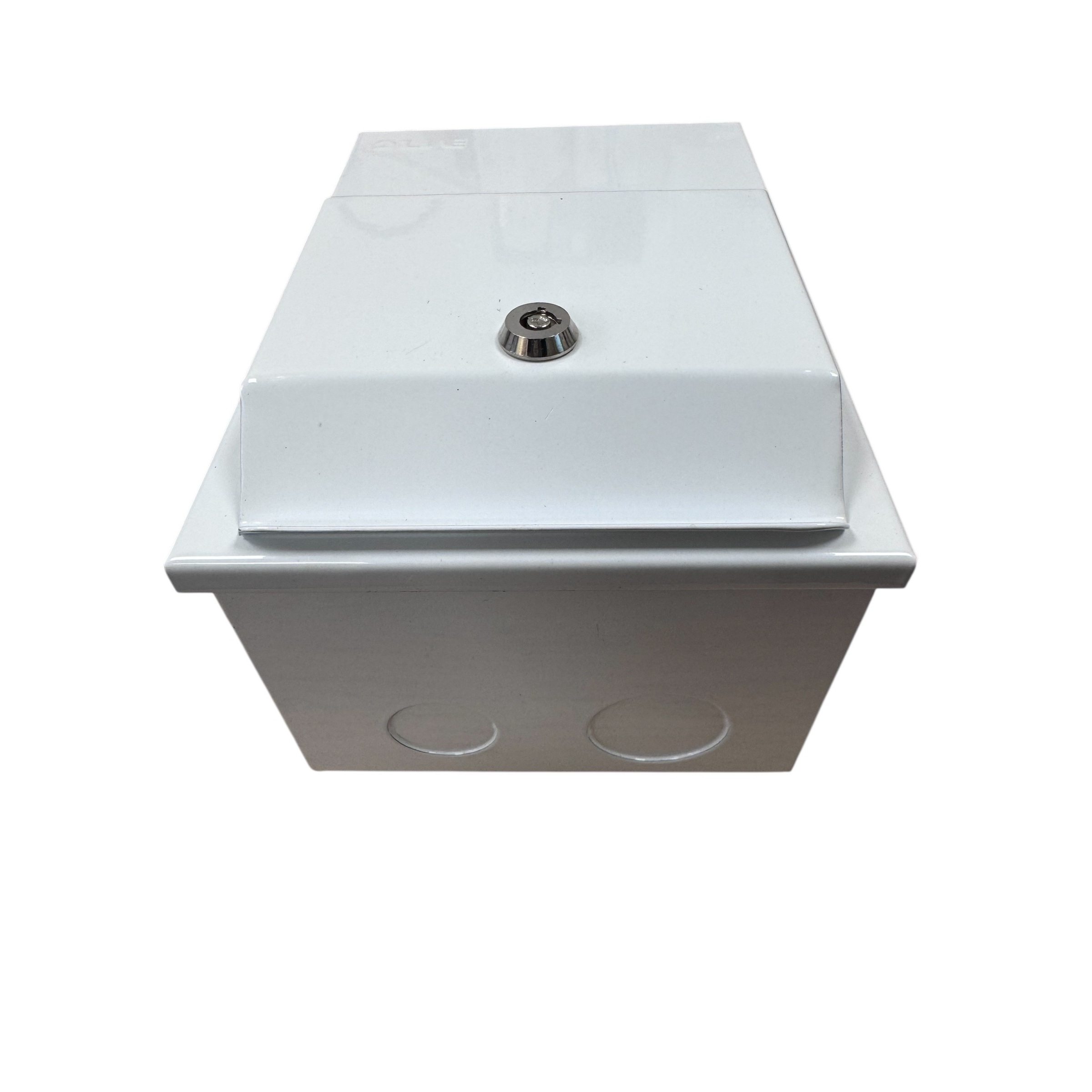

Knock-outs (&mm) on the top and bottom.

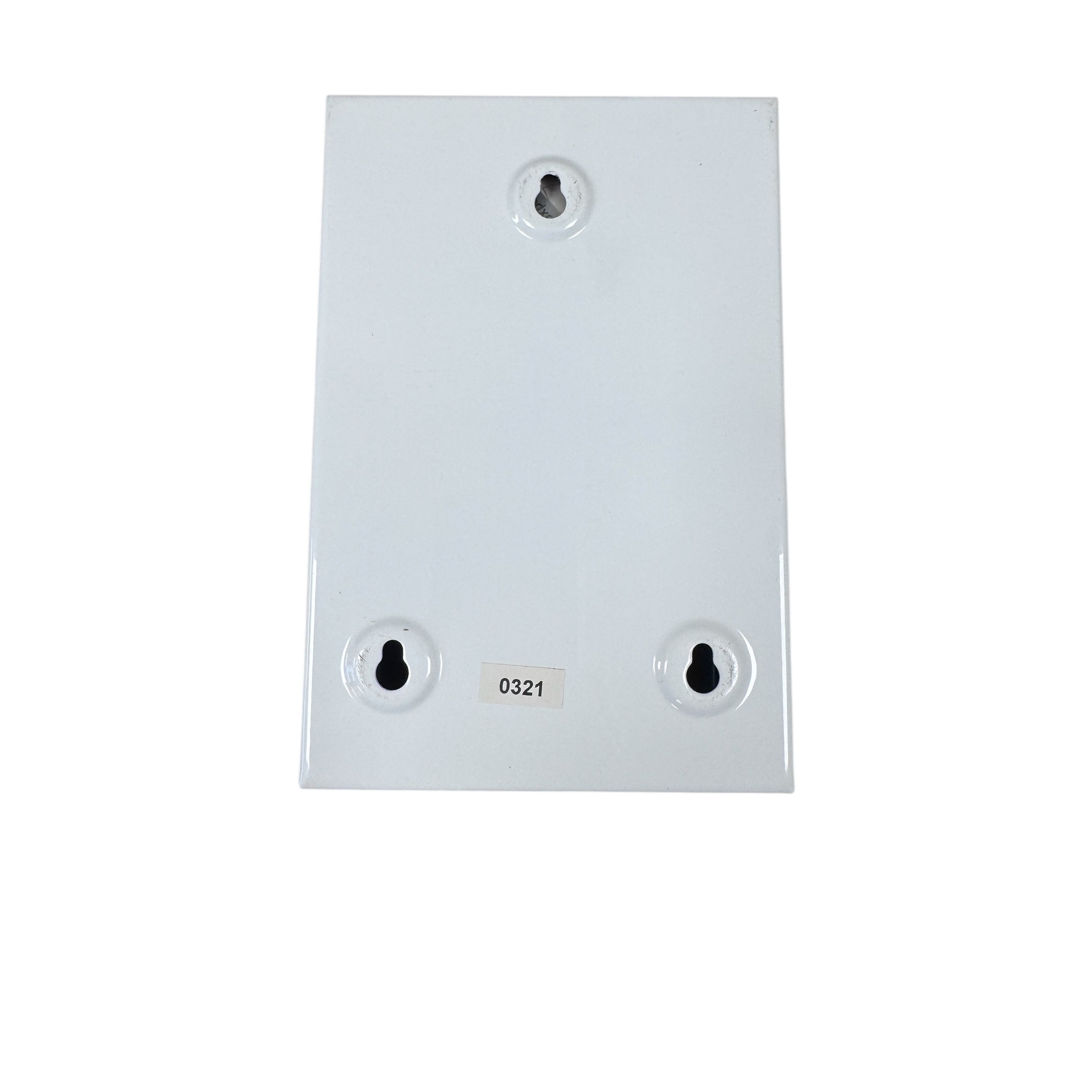

Raised key holes for secure easy installation.
Raised Din rail improves cable routing.
Modern style finished in white polyester powder coating to RAL.
Large and accessible wiring space, with extra space for RCBOs, MCBs,
Flexible connection allows for various configurations of protected ways.
IP20
BSEN-61439-3

SDM72D Data Sheet
