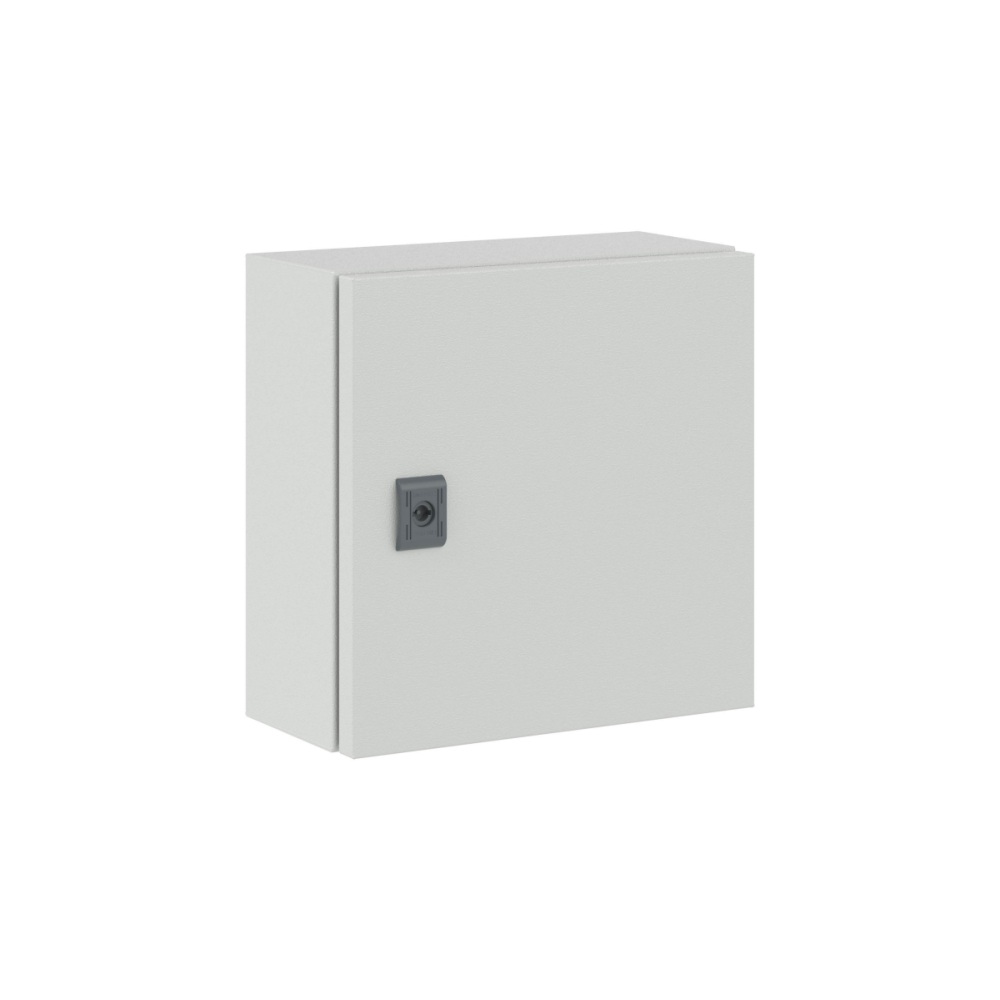

DKC 300 x 300 x 150mm IP66 Mild Steel Enclosure – R5CE0331

Characteristics

Designed for provision of reliable protection of installed equipment against external effects in power distribution and automation systems. CE series  enclosures are distinguished by operating reliability, made of high-grade sheet steel and coated with a layer of powder polyester paint having heat-resisting properties.
The enclosure has only 4 welds, thus ensuring high structural strength and reducing risks of corrosion.
Cast polyurethane seal provides high degree of protection against ingress of moisture and dust within the enclosure.
The mounting plate, flange and all necessary mounting accessories are supplied complete with the enclosure for ease of assembly, whereas the rear panel has perforated holes for surface mounting that excludes the need for marking and perforation.
A standard lock with a cylinder for a key with a double bit is replaced by other types of standard locks. It is possible to install special door rails for ease of installation of equipment on the door.
CE series enclosures comply with the most stringent quality standards which is confirmed by European and Russian certificates, and are recommended for use at marine vessels and in earthquake endangered areas.

Specifications

Approvals: CE UKCA cULus TUV EAC
Dimensions HxWxD: 300 x 300 x 150mm
Colour: Grey RAL 7035
Material Body:  Epoxy coated Mild Steel
Structure: 15/10 thick steel sheet
Mounting Plate: 20/10 thick galvanized steel.
Ingress Protection: IP66
Impact Protection: IK10
Door: Reversible, with one locking element (two locking elements for height over 500 mm)
Weight: 5.7 Kg

DKC Mild Steel Enclosure Data Sheet

Available Accessories

Mild Steel Key Lock: GRP-CLL
