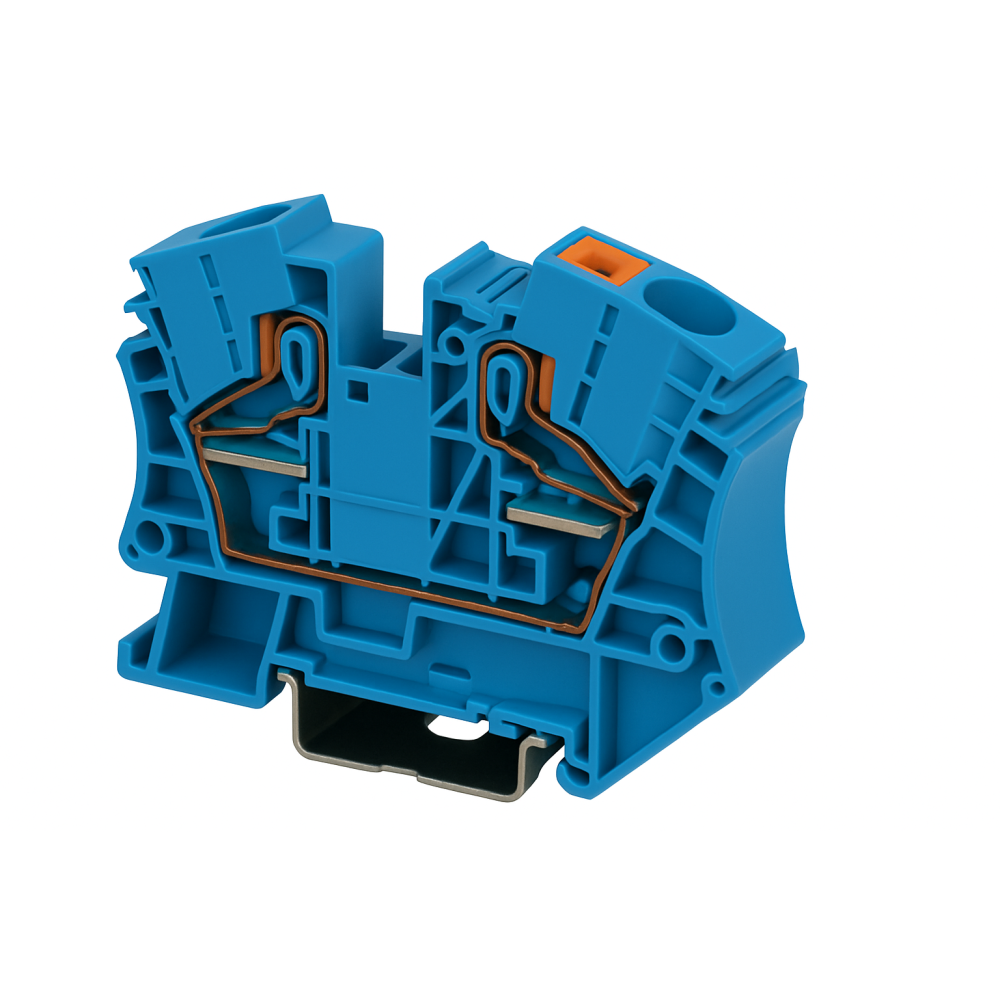

Dinkle Din Rail Terminal Blue 16mm Push In Spring Clamp – DP16-BL
Part No Description
DP16-BL Din Rail Terminal Blue 16mm Push In Spring Clamp
- 16mm Push In Spring Clamp Din Rail Mount Terminal Blocks
- Moulded in UL94-V0 flame retardent PA
- IP20 Touch proof
- 35mm Top Hat DIN Rail compatible
- cULus, VDE, CE & UKCA approved
- Full range of accessories including End Covers, Insert Bridges, Marking Tags and Din Rail available
Specifications
| Approvals | CE UKCA UL IEC |
|---|---|
| Dimensions (mm) | 12 x 53.1 x 76.5 |
| Manufacturer/Brand | Dinkle |
| Colour | Blue |
| Amperage | 72 AMP |
| Poles | 1 |
| Materials (Body) | PA |
| Cable Size, Flexible (mm2) | 16 |
| Cable Size, Solid (mm2) | 16 |
| Voltage | 1000V |
