Diamond LED 5ft Single Chatsworth III Pro 21-38W 3CCT Non Corrosive LED Batten c/w Emergemcy & Microwave – CH3P-5SEMMW

Description

Diamond LED 5ft Single Chatsworth III Pro 21-38W 3CCT Non Corrosive LED Batten c/w Emergency & Microwave – CH3P-5SEMMW

Part No                       Description

CH3P-5SEMMW          5ft Single Chatsworth III Pro 21-38W 3CCT Non Corrosive LED Batten c/w Emergency & Microwave

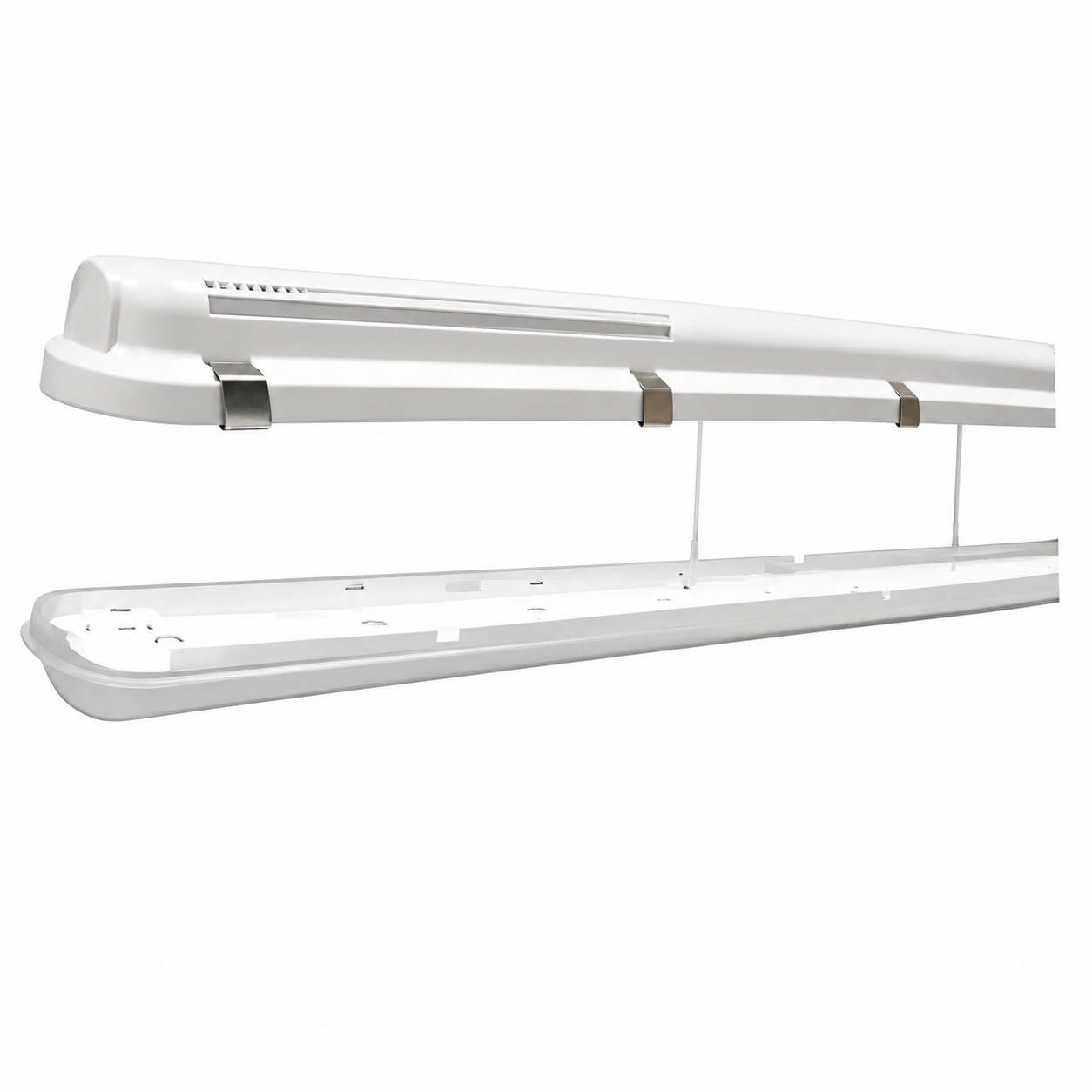

The Diamond LED CH3P-5SEMMW Chatsworth III Pro is a versatile 5ft single non corrosive LED batten designed for commercial, industrial and utility environments. With selectable wattage from 21W to 38W and three selectable colour temperatures, the fitting can be easily configured to suit different lighting requirements.

Rated to IP65, the CH3P-5SEMMW is suitable for demanding indoor and outdoor applications where protection against dust and moisture is required. Its robust polycarbonate construction and stainless steel clips provide a durable solution for warehouses, garages, workshops, plant rooms and other working environments.

Plug-In Options

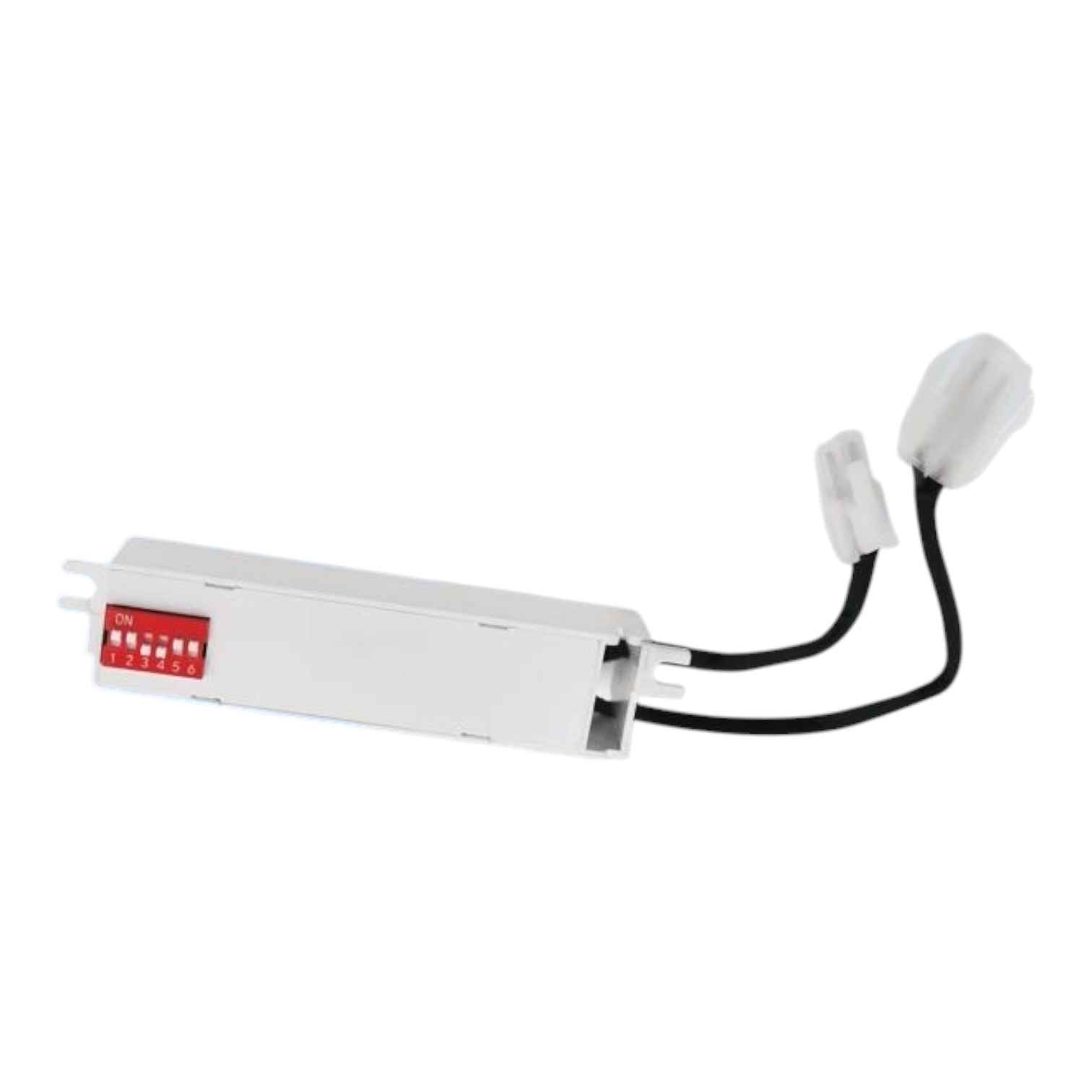

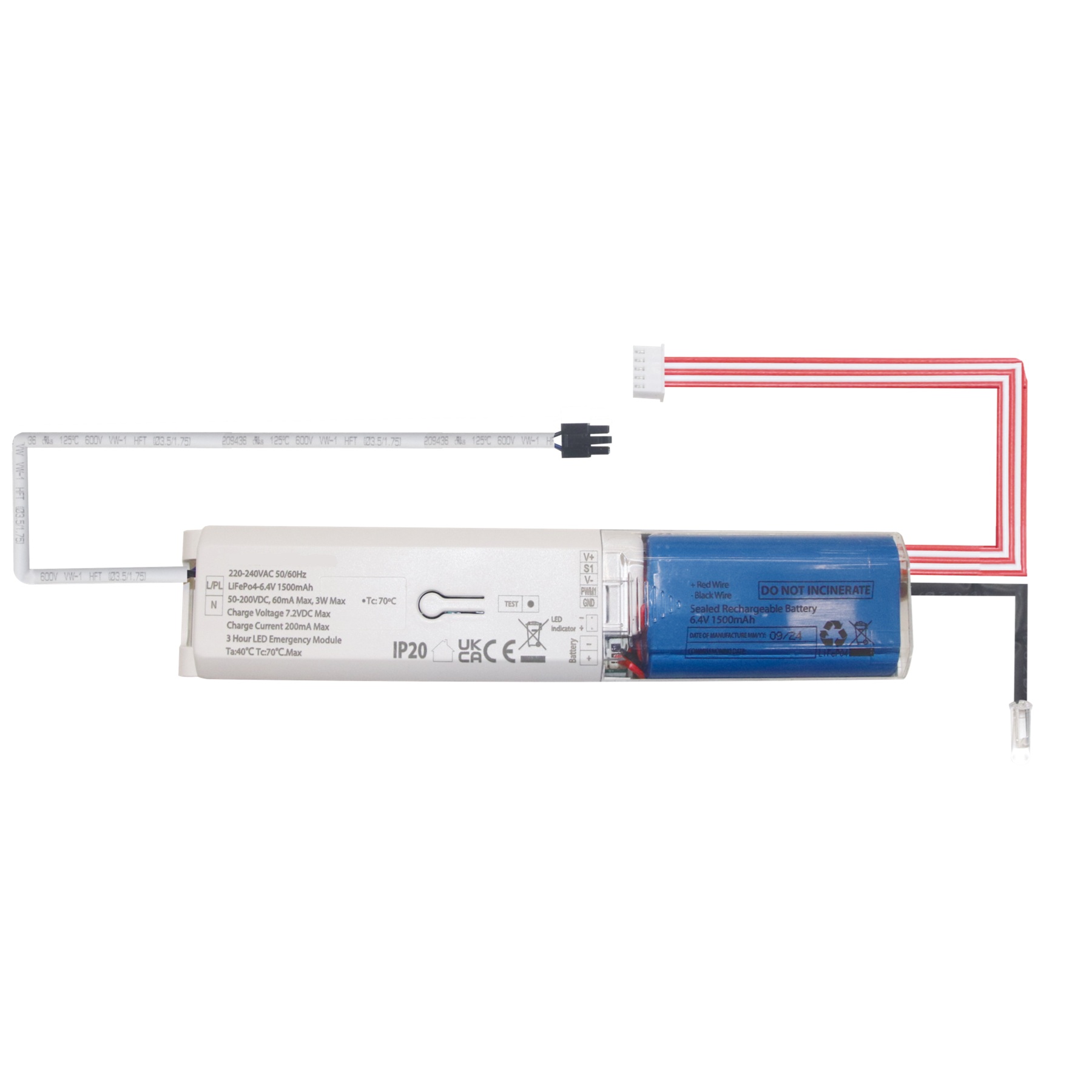

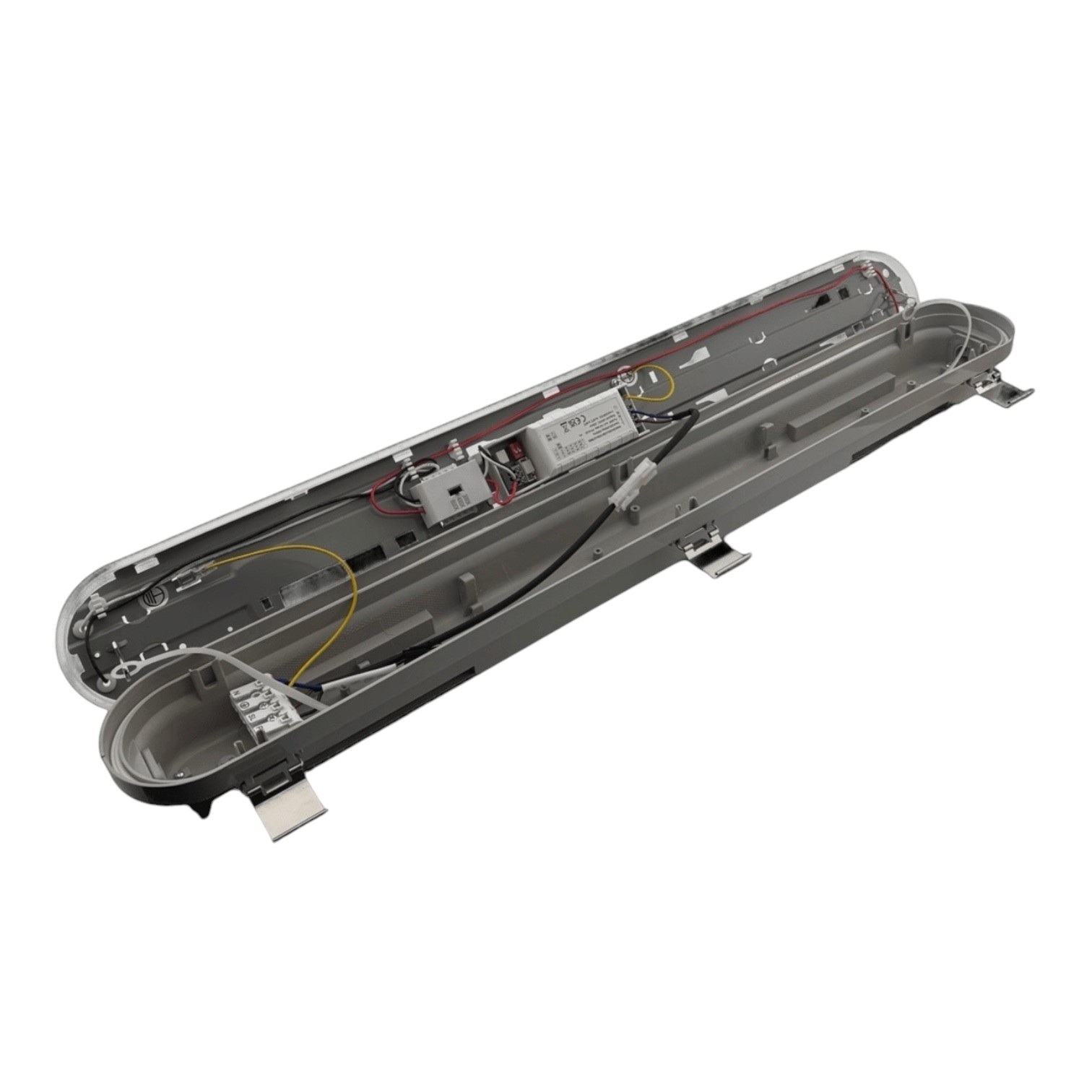

The Chatsworth III Pro features a flexible plug-in design, allowing compatible sensor and emergency modules to be integrated to create different product configurations. Available options include an internal microwave sensor, corridor function and 3-hour emergency operation. Please enquire for available variants and configurations.

Key Features

• 5ft single non corrosive LED batten c/w Emergency & Microwave
• Selectable wattage: 21–38W
• Selectable 3CCT: 3000K / 4000K / 6000K
• IP65 rated for protection against dust and moisture
• Suitable for indoor and outdoor applications
• Durable polycarbonate construction
• Stainless steel clips
• Surface mounted installation
• Plug-in sensor and emergency options
• Microwave sensor and corridor function options available
• 3-hour emergency option available
• Dimmable options available
• Supplied with fixing accessories
• 5 year warranty

Technical Specifications

• Part Number: CH3P-5SEMMW
• Range: Chatsworth III Pro
• Length: 5ft
• Type: Single non corrosive LED batten c/w Emergency & Microwave
• Wattage: 21–38W selectable
• Colour Temperature: 3000K / 4000K / 6000K
• IP Rating: IP65
• Voltage: 200–240V
• Installation: Surface mounted
• Construction: Polycarbonate body with stainless steel clips
• Dimensions: 1500 x 85 x 79 mm

Also available with microwave sensor, corridor function, emergency and dimming options. Please enquire for alternative product variants and configurations.

Applications

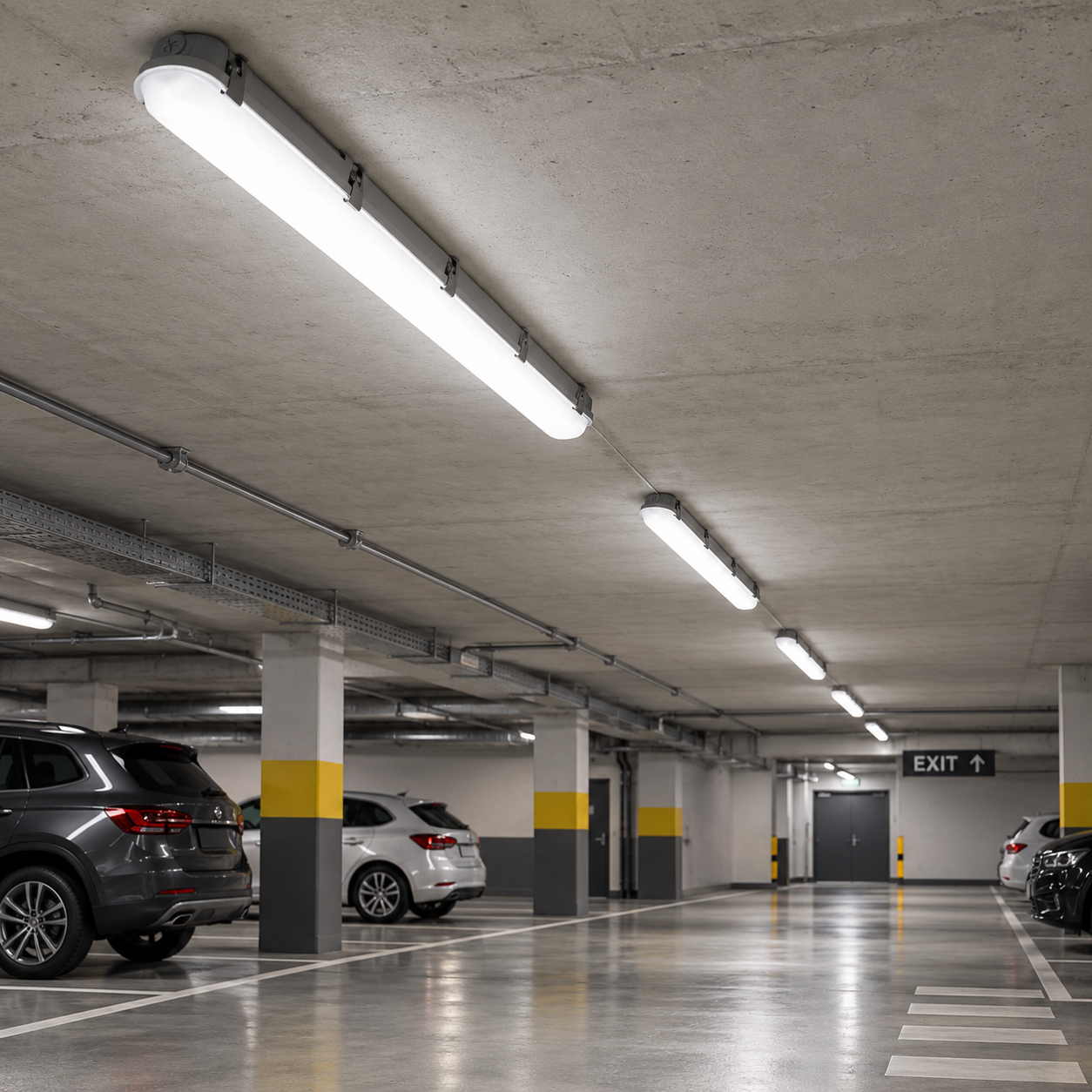

Ideal for warehouses, garages, workshops, plant rooms, storage areas and other commercial or industrial spaces requiring durable and reliable lighting. The IP65 construction also makes the CH3P-5S suitable for environments where protection from dust and moisture is essential.

CH3P-5SEMMW Data Sheet
