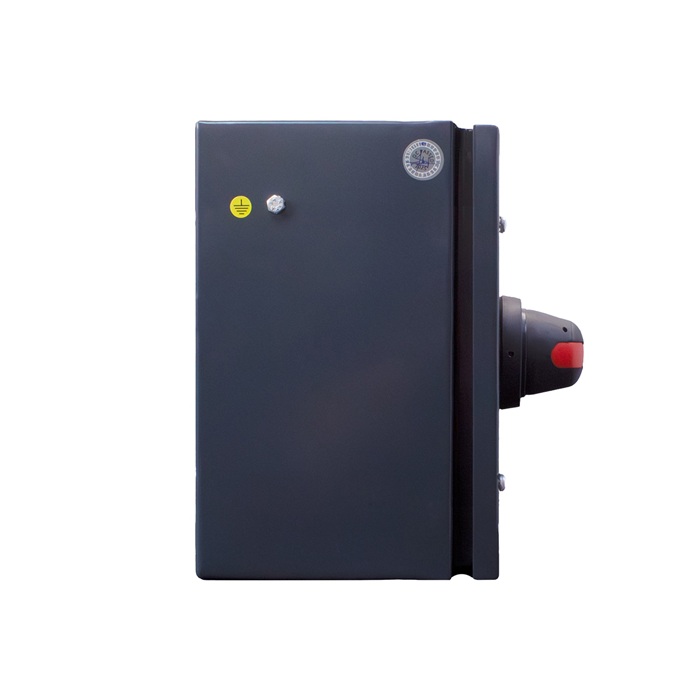

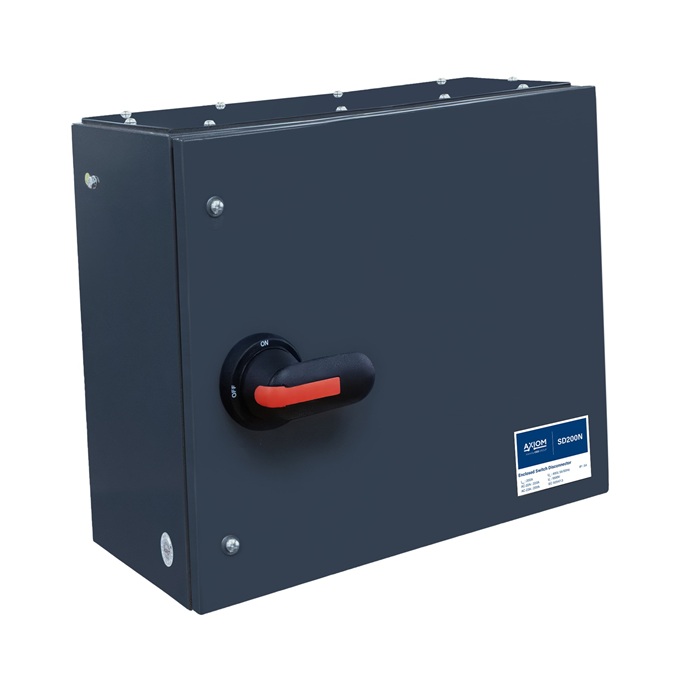

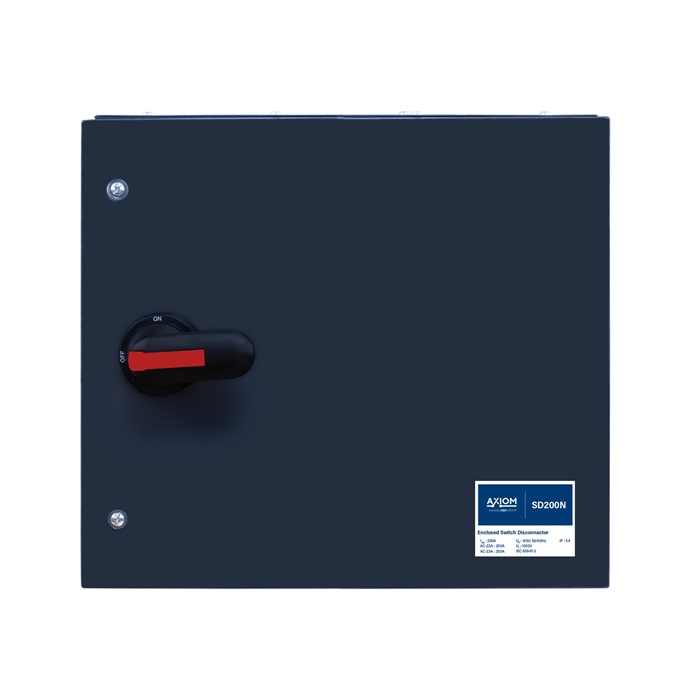

Axion CED 200A TPN Switch Disconnector – SD200N
Part No Description
SD200N 200A TPN Switch Disconnector
Axiom has expanded its professional protection portfolio with the launch of a comprehensive new Switch Fuse range, designed to deliver safe isolation, dependable circuit protection and robust switching performance across commercial, agricultural, industrial and distribution applications. Available in 32A, 63A, 100A, 160A and 200A variants, the range includes integrated Switch Disconnectors and Switch Fuse Isolators engineered for demanding three phase installations. Featuring an impressive 80kA breaking capacity, IP54 protection, padlockable handles and durable CRCA metal enclosures with DMC switch components, the range offers reliable long-term operation in tough environments. Designed with installers in mind, units support large conductor capacities and provide safe, fully isolated fuse replacement, whilst meeting IEC 60947-3 standards and carrying both CE and UKCA approvals.
Product Features
- Complies to low voltage directive 73/23/EEC and takes BS88 Part 2 – Fuses
- Fuses fully isolated (top & bottom) for safe replacement
- Lockable Handle
- Provides a visible, reliable, and physical separation of contacts, guaranteeing a “dead” circuit
- Designed to break circuits while under load
Technical Specification
General Information
| Ambient Humidity | Max 50% at 40°C, 90% at 20°C (As per standard) |
| Ambient Temperature (°C) | 40°C |
| Anti-Surge (Y/N) | N |
| Applications | Industrial |
| Approvals/Certifications | CE, UKCA |
| Body material | Enclosure- CRCA; Switch Body-DMC |
| Breaking Capacity | 80 KA |
| Class | I |
| Colour/Finish | Enclosure- RAL 5008 (Blue/Grey Semi Glossy) |
| Current (amps) | 200 |
| Dimensions (mm) | 400 x 400 x 220 |
| Frequency (Hz) | 50/60 |
| Ingress Protection (IP) | IP54 |
| Input Voltage (Hz) | 415 |
| Knockouts | Gland Plate |

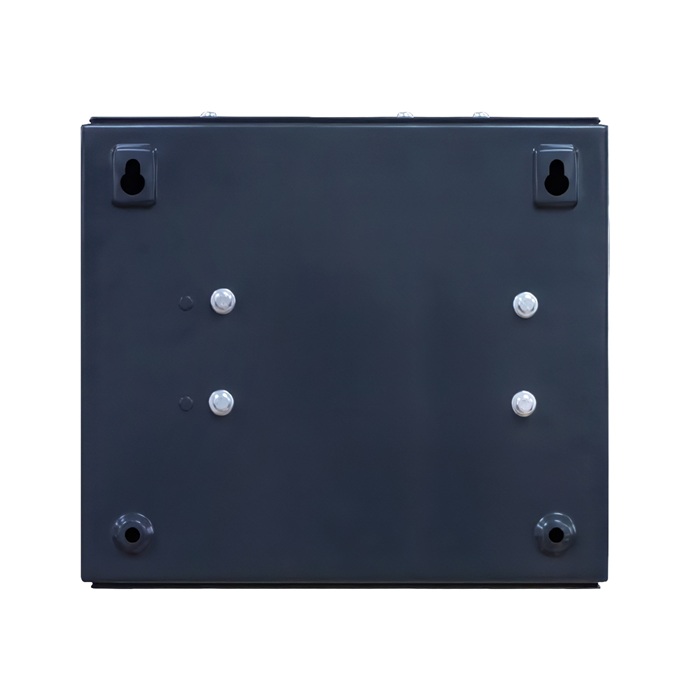

| Mounting | Wall |
| Number Earth Terminals | 2 |
| Number of Knockouts | Gland Plate |
| Number of Poles | TPN |
| Operating Temperature | 0-40°C |
| Phase | 3 |
| Switch type | Rotary Lockable |
| Terminal Capacity (mm²) | 95 |
| Torque (Nm) | 6N-m |
| Warranty Period (Years) | 1 |
