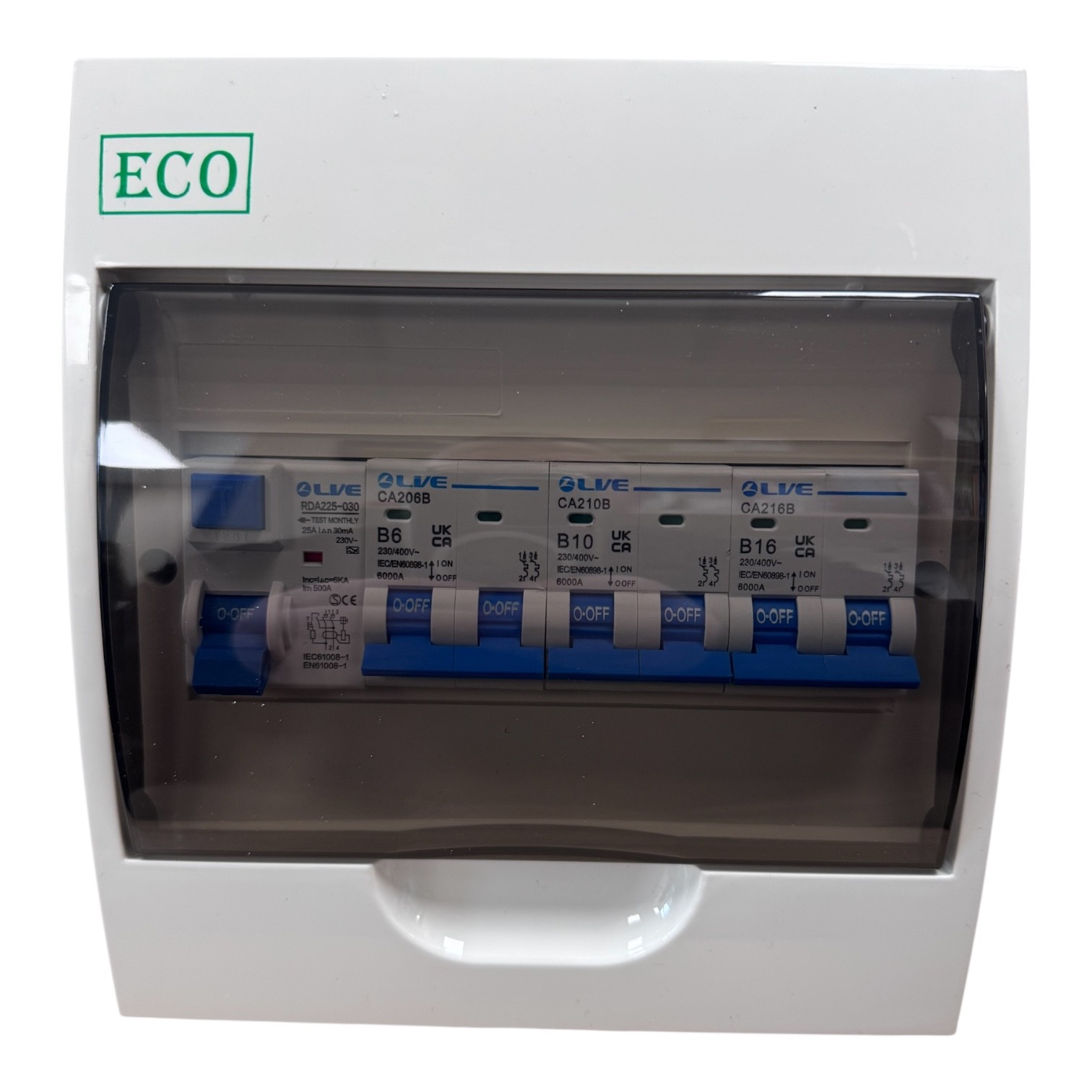

8 Way Double Pole Consumer Unit Surface Mounted Caravan Campervan Motorhome 25A 30mnA Type A RCD 2 Pole 6A MCB 2 Pole 10A MCB 2 Pole 16A MCB – CVMH2561016DPCU
Part No Description
CVMH2561016DPCU 8 Way Double Pole Consumer Unit Surface Mounted Caravan Campervan Motorhome 25A 30mnA Type A RCD 2 Pole 6A MCB 2 Pole 10A MCB 2 Pole 16A MCB
Enclosure
- Flame retardant ABS plastic
- Hinged transparent cover
- 8 Ways
- Flexibility to suit many applications
- DIN rail – for modular components
- Pre-fitted with: Earth and Neutral terminal bars, Neutral cable, busbar and labels
- 4 key hole type mounting holes
RCD
- Pole: 2
- Rated current (A): 25
- Rated voltage: 240/415V AC
- Rated frequency: 50/60Hz
- Rated residual operating current (mA): 30
- Type: A
- Rated residual no operating current: 5
- Rated conditional breaking current (Inc): 6000A
- Rated conditional residual breaking current: 6000A
- Tripping duration Instantaneous tripping: 0.1s
- Residual tripping current range: 5
- Electro-mechanical endurance: 4000 cycles
- Connection capacity Rigid conductor up to 25mm²
- Connection terminal screw terminal
- Pillar terminal with clamp
- Fastening torque 2.0Nm
- Installation@ On symmetrical Din Rail 35mm
- Panel mounting
MCB’s
- Rated current In (A): 6,10,16
- Poles: 2P
- Rated voltage Ue(AC): 230/400V
- Rated frequency: 50/60Hz
- Insulation voltage Ui: 500V
- Rated breaking capacity (A): 6kA
- Rated impulse without voltage (1.2/50) Uimp (V): 4000
- Dielectric test voltage at ind. Frq for 1 min (KV): 2
- Thermo-magnetic release characteristic: B
- Electrical life: 8,000
- Mechanical life: 20,000
- Contact position degree: IP20
- Reference temperature for setting of thermal element (C)@ 30
- Ambient temperature (with daily average 35C: -5 ~ +40)
- Storage temperature (C): -25 ~ +70)
Dimensions (HxWxD): 200 x 184 x 94mm
***** Please note: we can alter the MCB’s to suit your requirements *****
