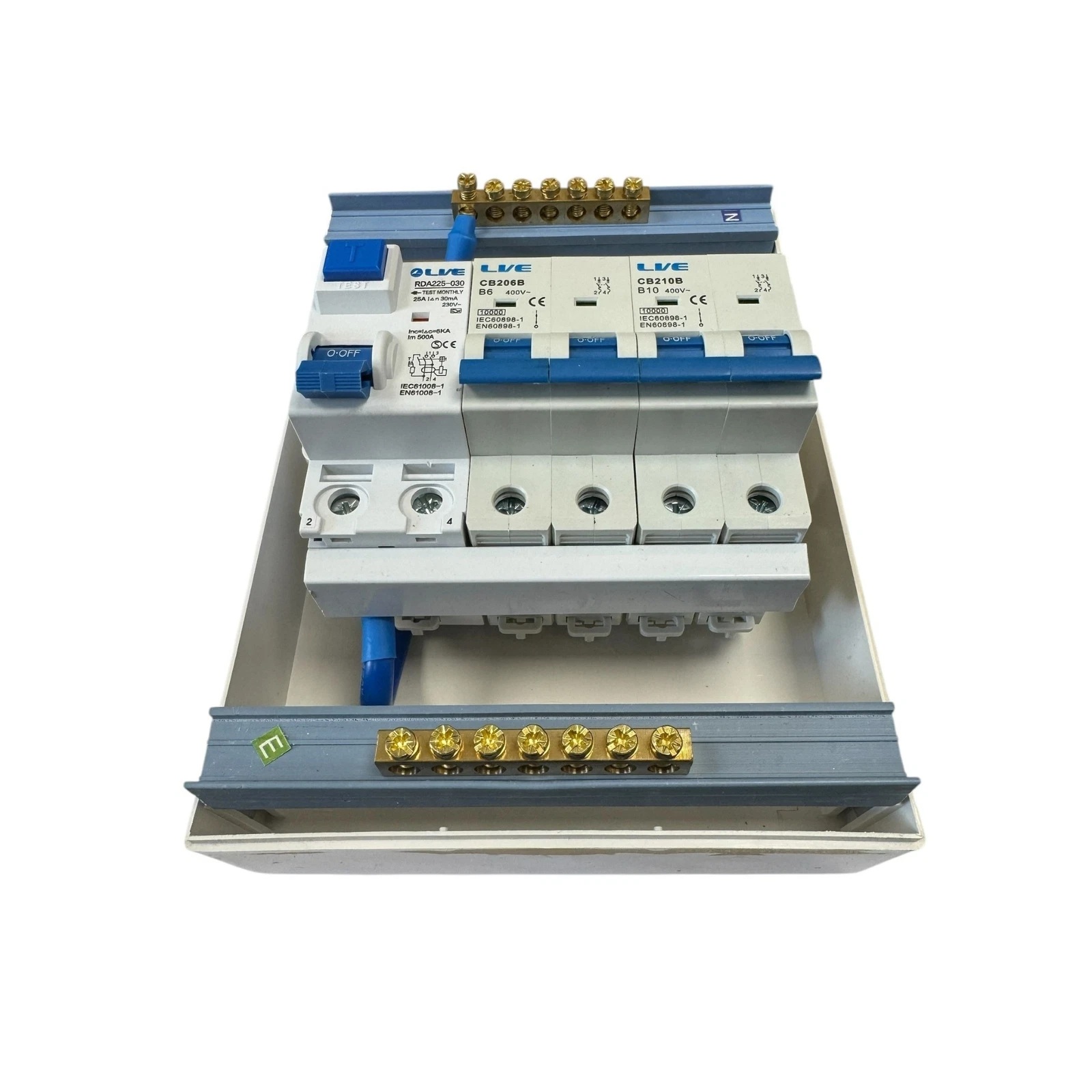

6 Way Double Pole Consumer Unit Surface Mounted Caravan Campervan Motorhome 25A 30mnA Type A RCD 2 Pole 6A MCB 2 Pole 10A MCB – CVMH25610DPCU

CVMH25610DPCU           6 Way Double Pole Consumer Unit Surface Mounted Caravan Campervan Motorhome 25A 30mnA Type A RCD 2 Pole 6A MCB 2 Pole 10A MCB

• Flame retardant ABS plastic

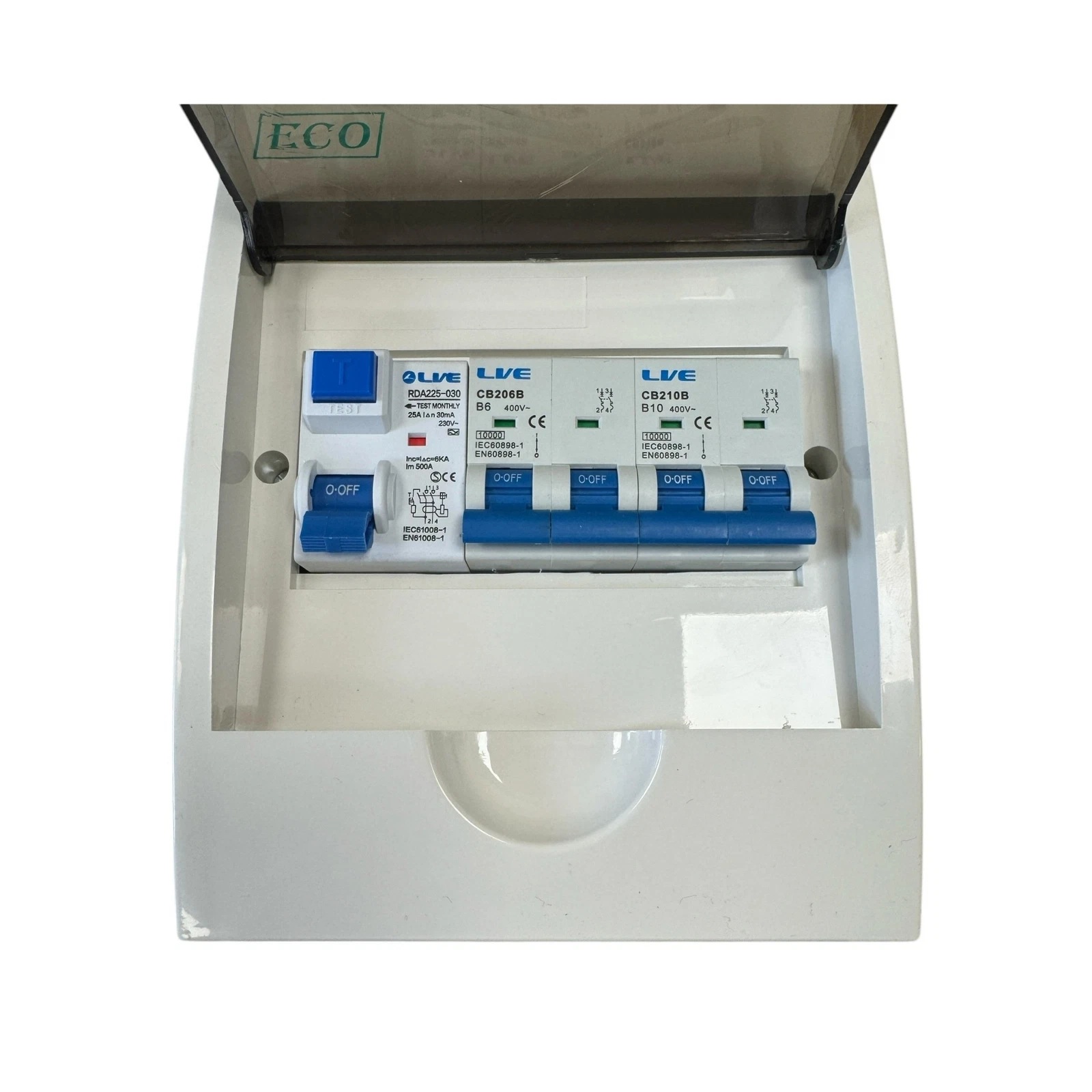

• Hinged transparent cover
• 6 Ways
• Flexibility to suit many applications
• DIN rail – for modular components

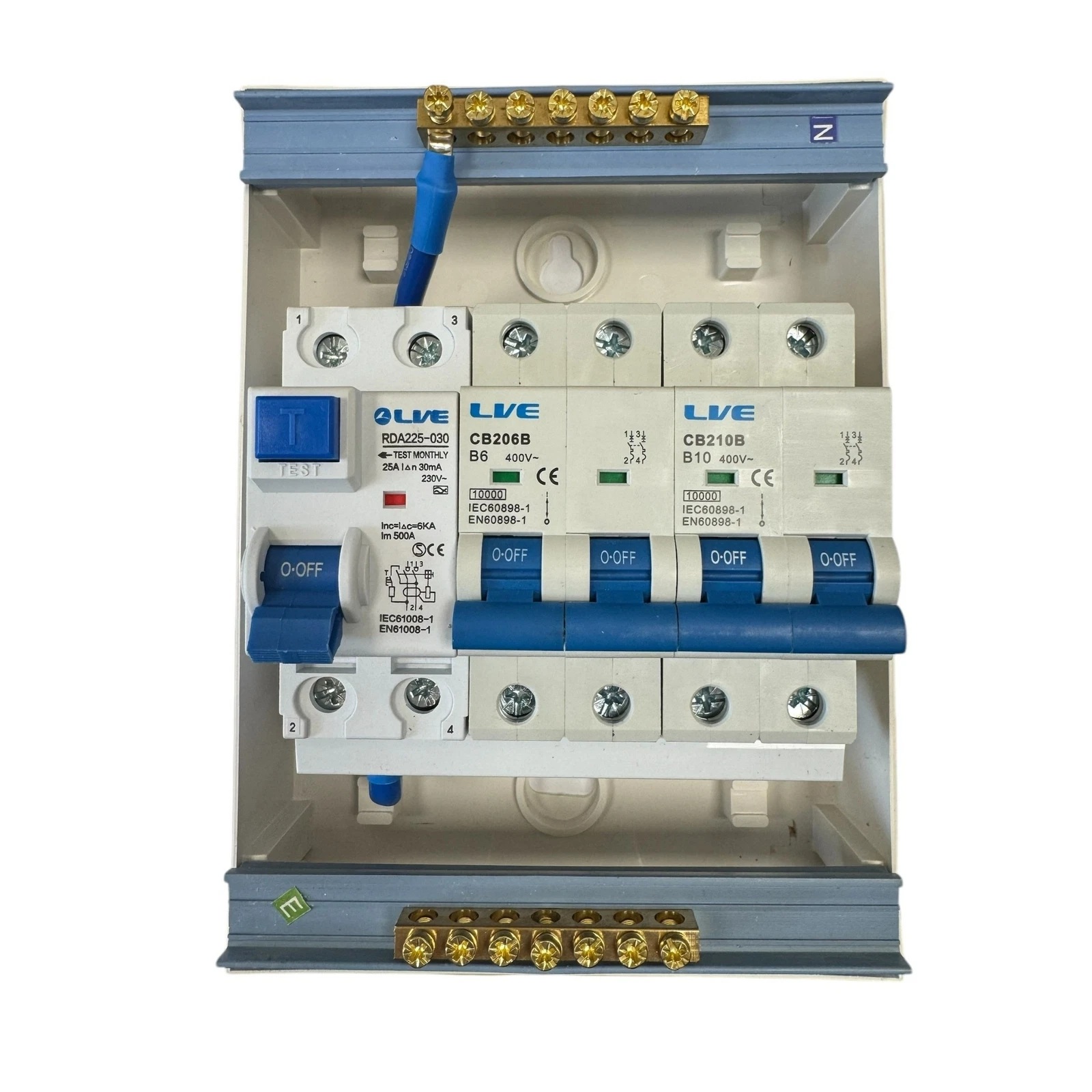

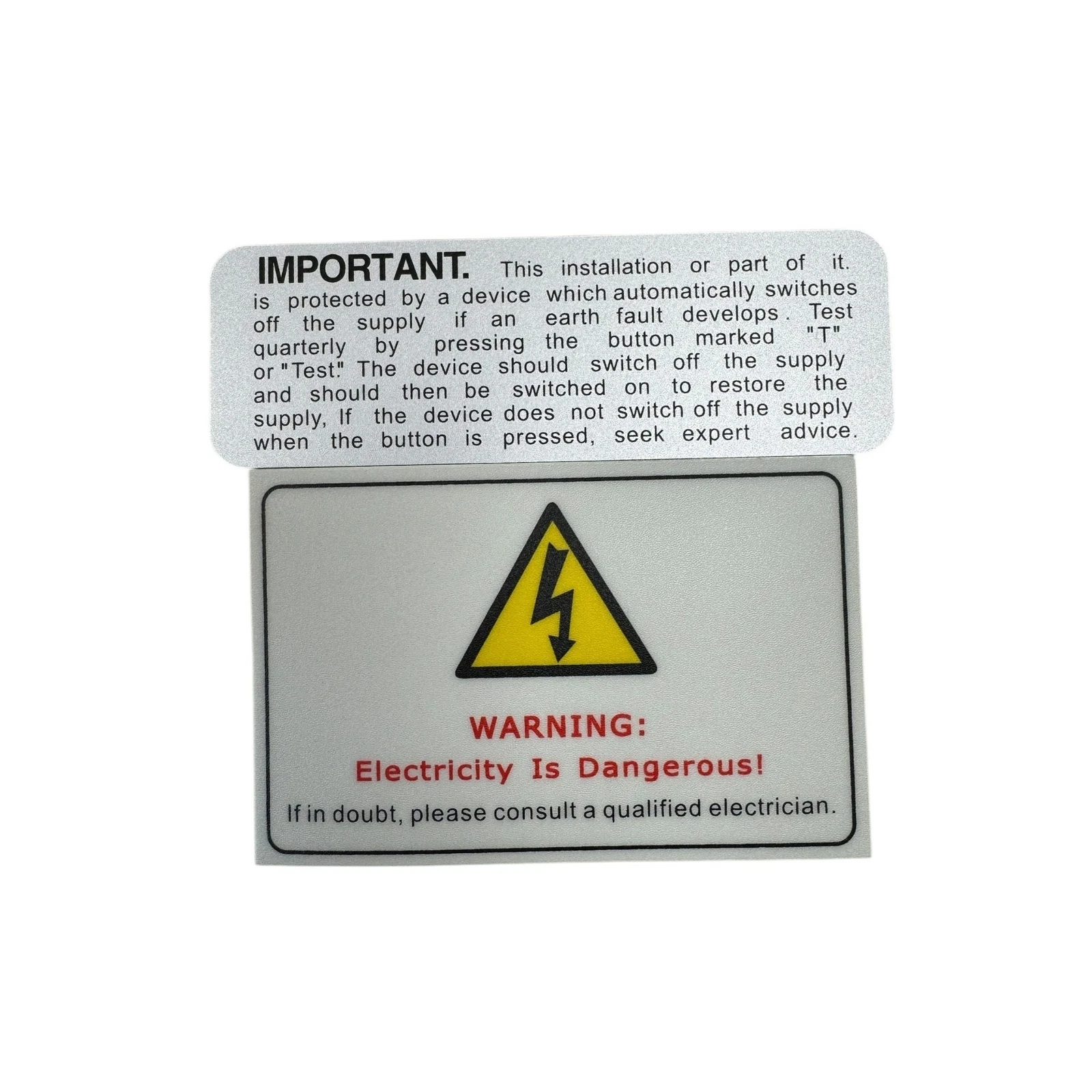

• Pre-fitted with: Earth and Neutral terminal bars, Neutral cable, busbar and labels
• 4 key hole type mounting holes

RCD

• Pole: 2
• Rated current (A): 25
• Rated voltage: 240/415V AC
• Rated frequency: 50/60Hz
• Rated residual operating current (mA): 30
• Type: A
• Rated residual no operating current: 5
• Rated conditional breaking current (Inc): 6000A
• Rated conditional residual breaking current: 6000A
• Tripping duration Instantaneous tripping: 0.1s
• Residual tripping current range: 5
• Electro-mechanical endurance: 4000 cycles
• Connection capacity Rigid conductor up to 25mm²
• Connection terminal screw terminal
• Pillar terminal with clamp
• Fastening torque 2.0Nm
• Installation@ On symmetrical Din Rail 35mm
• Panel mounting

• Rated current In (A): 6,10
• Poles: 2P
• Rated voltage Ue(AC): 230/400V
• Rated frequency: 50/60Hz
• Insulation voltage Ui: 500V
• Rated breaking capacity (A): 6kA
• Rated impulse without voltage (1.2/50) Uimp (V): 4000
• Dielectric test voltage at ind. Frq for 1 min (KV): 2
• Thermo-magnetic release characteristic: B
• Electrical life: 8,000
• Mechanical life: 20,000
• Contact position degree: IP20
• Reference temperature for setting of thermal element (C)@ 30
• Ambient temperature (with daily average 35C: -5 ~ +40)
• Storage temperature (C): -25 ~ +70)
